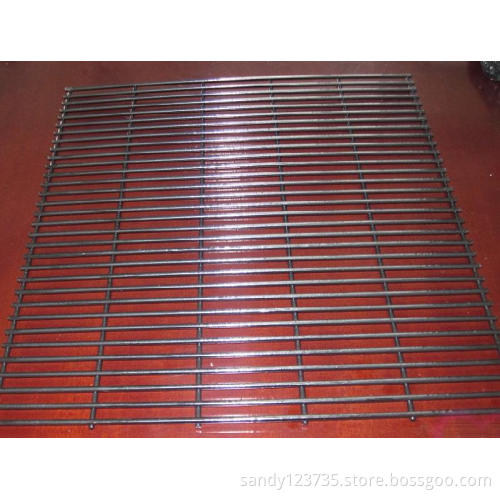

358 Fence Panel

Specifications

high security
fence panel/358 fence panel

1 hole size:12.7x75.2mm

2 wire dia:4mm

3 hot-galvanized

4 540-615N/mm2

Benefits

High security fence, anti-climb and anti-cut

Flat panel that gives improved aesthetic appearance

Maximum strength and security

Excellent through vision

Wide range of colour options

Available as a complete system

Application

Schools, Industrial & Commercial Sites, Infrastructure,
High Security.

Security fence/358 fence panel/prison mesh sheet

Mesh

electrically welded at
every intersection or its equivalent process

horizontal aperture:71.2mm

vertical aperture:8.7mm

flatness:+/-50mmclear of surface laid flat

Wire

4mm daimeter bright drawn inter annealead

tensile strenght:540-615N/mm2

fatigue resistance:13
No.90 deg bends(before welding)

8No.90 deg bends(after
welding)

welded shear strength:75%
of tensile strength of wire to EN10223-4:1998

Coating

Panels are manufactured from pre-galvanised wires.

An adhesion coating is applied to allow perfect adhesion with the polyester
coating (min. 100 micron).

Posts are polyester coated with a galvanized substrate in accordance with Euro
norm 10147.

Colours

Standard colours are Green RAL6005 and Black RAL9005.

Other colours are available on request.
