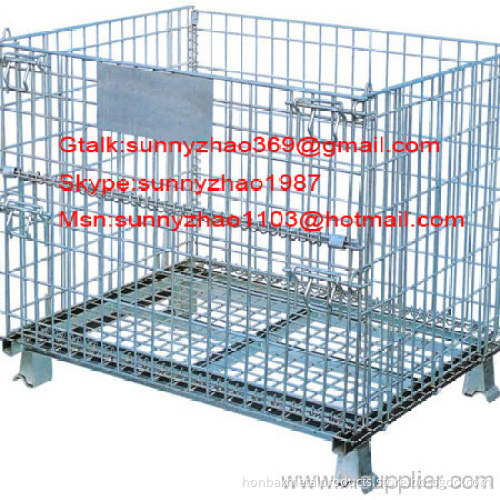

Storage Wire Mesh Container

TheFolding Wire Mesh Container, also names as wire mesh basket or wire mesh cage isan essential and flexible unit for material handling and storage. It'slightweight yet can hold up to 4,000 lbs. , durable yet low cost, can be usedfor a multitude of tasks yet is virtually maintenance free.
Examples ofcustom-built Wire Mesh Container options:
1. Cap channel over wireperimeter for added protection
2. Square-Stack legs for secure stacking
3. Tags, labels, card holders
4. Casters, fork sleeves, runnerbars
5. Dividers or security lids
6. Custom colors
7.Custom feet available.
8. Custom wire mesh size

Regular size (unit mm):

Item	Outer Size (LxDxH)	Mesh (mm)	Diameter (mm)	Load (kgs)	Net weight (kgs)	Quantity per 40' GP
XFW-A1	812X508X558	25X25	3	300	19	696
XFW-A3	800x600x640	50x50	6.0	800	32	696
XFW-A5	1000x800x840	50x50	6.0	1300	49	484
XFW-A7	1200x1000x890	50x50	6.0	1500	65	270
XFW-B5	1000x800x840	50x50	6.4	1500	55	440
XFW-B7	1200x1000x890	50x50	6.4	2000	71	270
XFW-S5	1000x800x840	50x100	6.4	1200	47	484
XFW-C2	800x500x540	25x50	4.8	500	25	832
XFW-A4	1000x600x640	50x50	6.0	1000	37	496
XFW-A71	1256X1060X1140	50x50	6.0	1500	87	200
XFW-S6	1200x800x840	50x100	6.4	1200	53	330
XFW-A8	1200x1200x890	50x50	6.0	1500	69	200
XFW-O5	1000x800x840	50x50	5.6	1000	44	484
XFW-AS9	2000X1200X890	50X100	6.0	800	86	135

Item	Size	Mesh pattern	Capacity	Quantity in 40' HC
Extra large container	40''x48''x42''	2''x2''	4000lbs	306
Senior container	40''x48''x36''	2''x2''	4000lbs	306
Medium container	32''x40''x34''	2''x2''	4000lbs	500
Junior container	20''x32''x22''	.5''x.5''	1100lbs	648
