Thermostale 304/316 stainless steel Hex Steel for refractory lining
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| size | 1.0*1.0mm |
|---|---|
| plate thickness | 1.5-2.5mm |
| plate height | 20-30mm |
| Aperture | 50*50/80*80mm |
| Material | Stainless Steel |
| Type | Other Wire Meshes |
| Wire Diameter | 2.0mm |
| Mesh Number | 2 |
Detail Description
Thermostale 304/316 stainless steel HexSteel for refractory lining

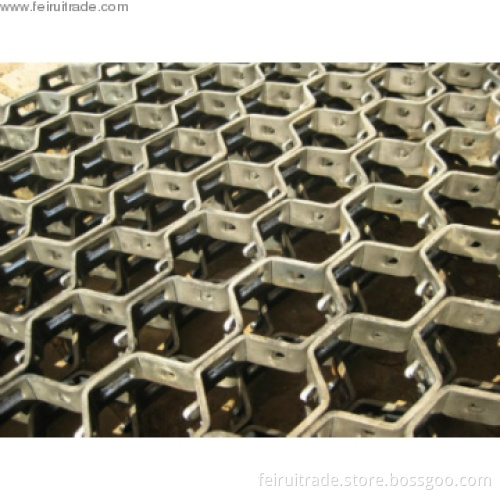

DEFINITION OF THE HEXMESH
The hex metal is the hexagonal nets which are assembled by barsteel ,
six edges have holes, easy curve radian , spot welding in dust cyclone or the cylinder body,
pour refractory material to increase the lifetime of use and the refractory material is not flake,
discharging mouth from congestion
MATERIAL OF THE HEXMESH carbon steel 0Cr13,1Cr13,0Cr18Ni9,1Cr18Ni9Ti
stainless steel 304,304L,316,316L,310s
SPECIFICATION OF THE HEXSTEEL
Holedistance 2cm-6cm,
Mesh thickness 1cm-2.5cm,
panel thickness 1mm-3mm
Mesh size 30mm, 40mm , 48mm, 50mm, 60mm, 80mm , 100mm
CONNECTION TYPE
inner buckle lock riveting , outer buckle lock riveting
STAINLESS STEEL HEXMESH FEATURES:
1.High wear resistance , high temperature ,corrosion resistance
2.strong Thermal state impact ability,
3.good mechanical processing performance
4. Used in about 1300°C
APPLICATION of the stainless steel hexsteel
As protecting fire-proof material, wear-resisting elbow, flexible castable, flexible lining
Used in power plant, cement plant.,Steel pipe furnace lining. Steel, petroleum, chemical industry,
power generation and other large devices, the hex metal can enhance wear resistance and strength of lining
The hex metal is the hexagonal nets which are assembled by barsteel ,
six edges have holes, easy curve radian , spot welding in dust cyclone or the cylinder body,
pour refractory material to increase the lifetime of use and the refractory material is not flake,
discharging mouth from congestion
MATERIAL OF THE HEXMESH carbon steel 0Cr13,1Cr13,0Cr18Ni9,1Cr18Ni9Ti
stainless steel 304,304L,316,316L,310s
SPECIFICATION OF THE HEXSTEEL
Holedistance 2cm-6cm,
Mesh thickness 1cm-2.5cm,
panel thickness 1mm-3mm
Mesh size 30mm, 40mm , 48mm, 50mm, 60mm, 80mm , 100mm
CONNECTION TYPE
inner buckle lock riveting , outer buckle lock riveting
STAINLESS STEEL HEXMESH FEATURES:
1.High wear resistance , high temperature ,corrosion resistance
2.strong Thermal state impact ability,
3.good mechanical processing performance
4. Used in about 1300°C
APPLICATION of the stainless steel hexsteel
As protecting fire-proof material, wear-resisting elbow, flexible castable, flexible lining
Used in power plant, cement plant.,Steel pipe furnace lining. Steel, petroleum, chemical industry,
power generation and other large devices, the hex metal can enhance wear resistance and strength of lining
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 50 pcs |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | acrroding to the quantity and generally 50 m2 for a week |
| FOB Port | Tianjin |
| Loading Info | from tianjin port packed by pallet |
| Packing Info | packed by pallet and for 20` container |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
