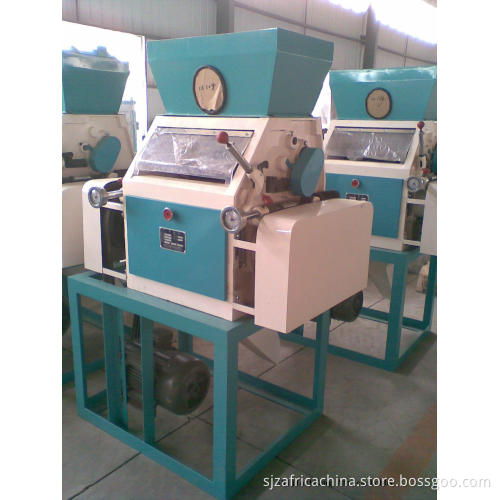

Flour Mill

First, feed mechanism: The feed mechanism is composed of feed rolls\drive mechanism\flowing adjustment mechanism, the primary action is: Throw the stock into grinding area; Ensure equably distribute and equable thickness at the length of the whole grinding area; Adjust the rate of flow of stock, ensure the rated processing.
Second, drive mechanism: Such mill adopts V-belt drive. Motor drive the fast roll by the V-belts, and the roll drive the slow roll by chain wheel, feed roll is drove by slow axis using strap. For ensuring the tighten degree of V-belt, adjusting the upper and lower condition of the motor.
Third, roll: The roll is the primary action part of mill, the roll is cast with double metals, in the center of roll is cast iron; The surface is made with chilled metal cast iron, which is quite high rigidity. The quality of the roll influenced the flour directly. After running a moment, the teeth of mill wear and tear, flute again, fluting should use the special machine and the fluting parameter must obey our offer.
Fourth: Roll-gap adjustment mechanism: The roll-gap adjustment mechanism is composed of roll-gap wheel\screw\spring bush\both sides nuts combination of spring bush. Fast roll immobility, lower roll swing around the fixed axis, first adjust the both sides nuts combination of spring bush to make the spring have definite tightening force, then adjust the roll-gap director wheel, thus, may adjust the roll-gap.
