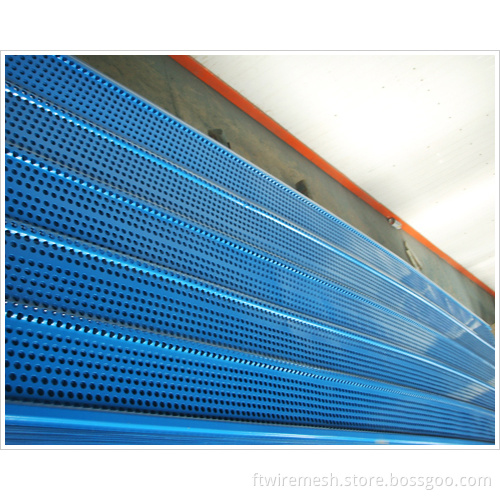

Wind Dust Network

Wind Dust Network
1. The type:
Single peaks wind dust net; Twin peak wind dust net; Three peak wind dust net.
2. The details information:
1)single peak wind dust net:
Forming 250mm-500mm in width
Peak of high is 50mm-100mm
Plate thickness0.5mm-1.5mm
Length: 0-4m
We can produce according to customer's request.
2)Twins peaks wind dust net:
Forming 400mm-600mm in width
Peak of high is 50mm-100mm
Plate thickness0.5mm-1.0mm
Length: 0-10m
We can produce according to customer's requirements.
3)Three peaks wind dust net:
Forming 810mm in width
Peak of high is 80mm
Plate thickness 0.5mm-1.0mm
Length: 0-10m
We can produce according to customer's requirements.
Three peaks of this specification have better advantage than above two specifications, simple
Installation, high-efficiency of construction, after install this construction, the wall have good
Overall performance, and can resistance strong wind. It reduces construction cost, and promotes
Competitiveness of construction organization in market. If the width is inappropriate, our
Company can according your steel structure size to make single peak, twins peaks of wind dust
Network, to easy combined.
3. The character:
1) change the wind direction;
2)slow down wind power;
3) dust suppression;
4) noise control;
5)long validity;
4. The application:
Anti-wind and dust mesh used in coal mines, coking plants, power plants and other enterprises and factories in the wind and dust of the coal storage yard; Harbor, wharf storage coal yard and thekinds stockyard; Iron and steel, building materials, cement and other enterprises stockyard; Crops windproof, desertification weather dustproof. Railways, highways coal loading stations, construction sites, road dust, along highways. The monolayer of wind and dust effects up to 65% -85% the double wind Dust effect of up to 95% more.
