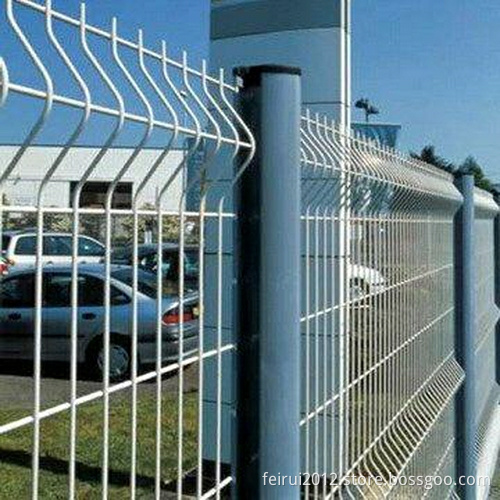

Welded High Security Fence/ Galvanized Fencing (ISO 9001; 2008)

3D wire fencing
Cost Effective
The welded mesh fence panels provide competitive price levels whilst retaining high quality, rigidity and performance.
Long Life
Galvanized and PVC coated of corrosion resistance for long life and low maintenance and attractive appearance.
High Strength
The welded mesh fence panels are welded from strong steel wire, with rectangular mesh and horizontal reinforcements that give the panels a high strength.
Rapid Installation
All components attractive fence with the other components which achieves professional and high quality fencing, installed with maximum effectiveness.
Specifications Of Welded Mesh Fence Panels:
The welded mesh fence panels could be 4 curvy, 3 curvy, 2 curvy according to the height of the mesh fence, and which are available in a range of heights from 1030 to 2500mm and have a width of 2500 to 3000mm.
The wire diameter is usually from 4mm to 5mm, which welded at each intersection. The panels have vertical barbs of 20mm-30mm at the top.
The mesh patterns are 100X50mm, or 150X70mm, 200mmx50mm.
Specifications can be customized.
Posts
The panels are secured laterally on the posts with specialized fixing made out of metal (security clips). The tubular posts (50X70mm, or 70X100mm) in H-shape are covered with a plastic cap.
Specifications can be customized.
Coating Techniques & Colors
The welded mesh fence panels are galvanized before PVC-coating adhesion to the product surface in accordance with the GB/T18226-2000 standard.
The Colors of PVC coatings usually are RAL6005 and RAL9003. Other colors can be requested.
RAL 6005 (light moss green)
RAL 9003 (signal white)
3D Welded wire Mesh Fence Application:
The welded mesh fencing can be used for gardens, factory, road, highway, public buildings, parks, government buildings, ball court, industry & commercial sector
