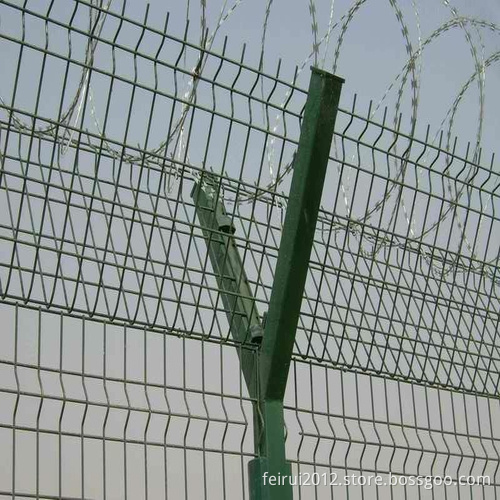

High Security Prison Wire Mesh Fr4

Prison Wire Fence/ 358 High Security Prison Welded Wire Fence Brief Introduction
Anti-climb Prison welded Fence, PVC coated 358 Welded Mesh Panel, Anti Climb Fence, Prison Fence, Vinyl coated 358 welded mesh panel, 358 wire panels system.
High security fencing/ Anti-climb Fence is extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. '358' comes from its measurements 3" X 0.5" X 8 gauge which equates to approx 76.2mm X 12.7mm X 4mm in metric.
Prison Wire Fence/ High security fencing Panel
Materials: Heavy Low Carbon Wire, Heavy Mild Steel Wire, Stainless Steel Wire
Wire Dia.: 3.8/4mm
Mesh size: 76.2mm (3") X 12.7mm (0.5") welded at each intersection
Horizontal wires: 4mm diameter at 12.7mm centres
Vertical wires: 4mm diameter at 76.2mm centres
Fence Height: 1800, 2000, 2155, 2400, 2515, 3000mm
Prison Wire Fence/ high security fencing Post
Anti-climb Fence Post System:
80X60X2.5mm RHS intermediate posts pitched at 2.525m centres
80X80X3mm RHS corner posts
Utilise steel fixing brackets to secure panels to the front face of the posts
Panels are butt jointed at each post for securing with double-drilled fixing brackets, posts are fitted with twin rows of M8 threaded inserts
High security fencing Finish
Forms of corrosion resistance include electric galvanized, hot-dipped galvanized, powder coated.
Colours: Standard colours are Green RAL6005, Black RAL9005 and Yellow RAL1021.
Other RAL colours are available on request.
Enhanced Security:
Barbed wire, Razor wire at the top to make the fence more safety
Anti-climb 358 Fence Coating Technique
Panels made out of galvanised wires (min. 40 G/M² ). An adhesion coating is given for a perfect adhesion with polyester coating (min. 100 micron)
The posts are polyester powder coated with a galvanised substrate in the accordance with Euro norm 10147 (min. 60 micron)
Anti-climb 358 Fence Specifications
