Product Description

200TZM Diesel engine Sand dredge Pump /Sand Dredging Pump / Diesel Engine Sand Pump / Diesel Engine Dredging Pump

InDiesel engine Sand dredge Pump troduction:

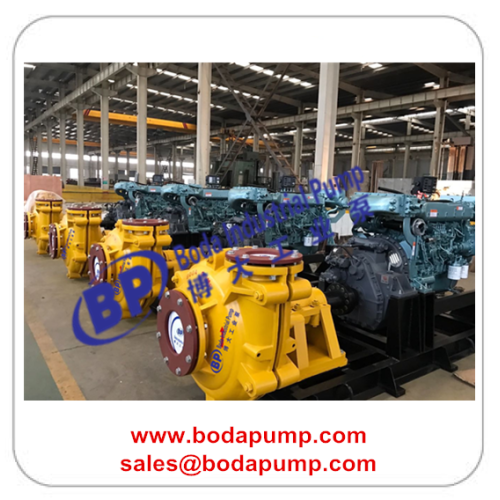

200TZM Diesel engine Sand dredge Pump

Durable diesel engine mud and sand dredging pump with lowest price

Sand pump are designed for sucking sand and gravel from river/lake/sea and so on.

It also can transport sludge in the pond,sewage&dross in the mining and industry production.

It is the ideal energysaving auxiliary pump of sand pumping barge,water well drilling rig and

other basic engineering equipment.

We can supply various size of diesel engine mud and sand dredging pump with lowest price.

The Features:
1. The frame plates for Diesel engine Sand dredge Pump have replaceable wear-resistant metal liners or rubber liners. The impellers are made of wear-resistant metal or rubber. The frame plate liner and impeller for TZH pump are adoptable of hard metal only.
2. Bearing assembly use cylindrical structure,adjusting the space between impeller and front liner easily, being removed completely when being repaired. Bearing assembly use grease lubrication.
3. The shaft seal could use the packing seal, expeller seal and mechanical seal.
4. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
5. There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices.
6. Wide performance, good NPSH and high efficiency. The pump of this type may be installed in multistage series to meet the delivery for long distance.

Application:
TZS, TZH pumps are used to pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc. in the industries of metallurgy, mining, coal, power, building material and etc. The temperature of the pumped solid-liquid mixture should be ≤80oC, and the weight concentration should be ≤60.

Slurry Pump Construction

Pump Body: Cast Iron/Grey Iron
Front Cover: High Chrome alloy/ Rubber lined

Impeller: High Chrome alloy/ Rubber lined
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP54 / IP55/IP67
Cooling: water cooling

Mining Tailing Slurry Pump Performance Table:

Type	Allowable Mating Max.Power(kw)	Clear Water Performance						Impeller
		Capacity Q		Head H (m)	Speed n (r/min)	Max EFF η(%)	NPSH) (m)	No of Vanes	Impel Dia(mm)
		(m3/h)	(L/S)
20TZS-PB	15	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152
40TZS-PB	15	32.4-72	9-20	6-58	1200-3200	45	3.5-8	5	184
50TZS-PC	30	39.6-86.4	11-24	12-64	1300-2700	55	4-6	5	214
75TZS-PC	30	86.4-198	24-55	9-52	1000-2200	71	4-6	5	245
75TZS-PD	60
100TZS-PD	60	162-360	45-100	12-56	800-1550	65	5-8	5	365
100TZS-PE	120
100TZS-PD	60	180-396	50-110	7-61	600-1600	55	3-8	4	372
100TZS-PE	120
150TZS-PE	120	360-828	100-230	10-61	500-1140	72	2-9	5	510
150TZS-PR	300
150TZS-PE	120	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
150TZS-PR	300	360-828	100-230	7-52	400-1000	70	2.5-6	4	536
200TZS-PST	560	612-1368	170-380	11-61	400-850	71	4-10	5	686
250TZS-PST	560	936-1980	260-550	7-68	300-800	82	6	5	762
300TZS-PST	560	1260-2772	350-770	13-63	300-600	77	3-10	5	965
350TZS-PST	560	1368-3060	380-850	11-63	250-550	79	4-10	5	1067
350TZS-PTU	1200
200TZM-PE	120	540-1440	150-400	14-60	600-1100	73	4-10	5	549
