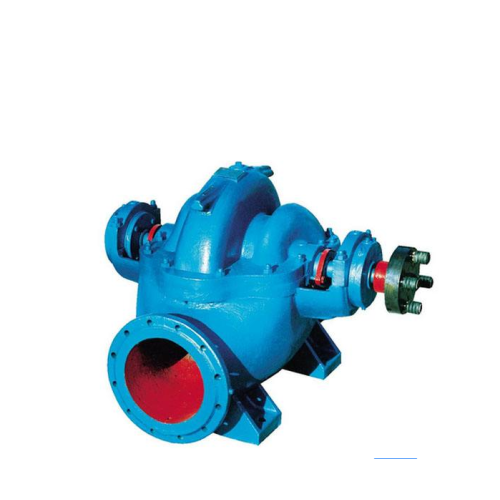

S type single stage double suction centrifugal pump

S type single stage double suction centrifugal pump

The S-type single-stage double-suction centrifugal pump is mainly suitable for the occasions of water supply in waterworks, air conditioning circulating water, building water supply, irrigation, drainage pumping station, power station, industrial water supply system, fire protection system, shipbuilding industry, etc.

S type single stage double suction centrifugal pump operation data

Pump outlet diameter DN 80~800mm

Flow rate Q ≤11600m3/h

Head H ≤200m

Working temperature T ≤105°C

Solid particles ≤80mg/L

Work permit pressure ≤25

Allowable test pressure ≤ 37.5

S-type single-stage double-suction centrifugal pump structural features

1. Compact structure Beautiful appearance, good stability and easy to install.

2. Smooth and optimized design of the double suction impeller to reduce the axial force to a low limit, and the blade shape with excellent hydraulic performance, and through precision casting, the inner surface of the pump casing and the surface of the impeller are extremely brilliance with significant anti-cavitation performance. And high efficiency.

3. Bearings SKF and NSK bearings are used to ensure stable operation, low noise and long service life.

4. Shaft seal BURGMANN mechanical seal or packing seal is used. Can guarantee 8000 hours of operation without leakage.

5. Installation form No adjustment is required during assembly, depending on the conditions of use on site. Discrete or horizontal installation.

6. Adding a self-priming device can realize automatic water absorption, that is, no need to install the bottom valve, no vacuum pump, no need for backflow, and the pump can be started.

S-type single-stage double suction centrifugal pump application range

The parts of the pump are pressed by stainless steel plates, laser welded, and a variety of stainless steels are available. Therefore, the SLG pump is widely used for conveying all kinds of clean water and light corrosive liquids. Water supply and pressurized industrial boiler water supply and air conditioning system cycle experience water treatment and reverse osmosis system food industry, pharmaceutical industry water

S type single stage double suction centrifugal pump working conditions

Flow range: 0.8m3/h~120 m3/h;

Head range: 5.6m~330m;

Temperature range: -20 ° C ~ 120 ° C;

Type of liquid to be transported: various clean waters and light corrosive liquids;

Pump chamber pressure: ≤ 4.0MPa.
