FGD Power Plant Vertical Pump

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shijiazhuang
Productivity:	200sets/month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO
Transportation:	Ocean,Land,Air

Product Description

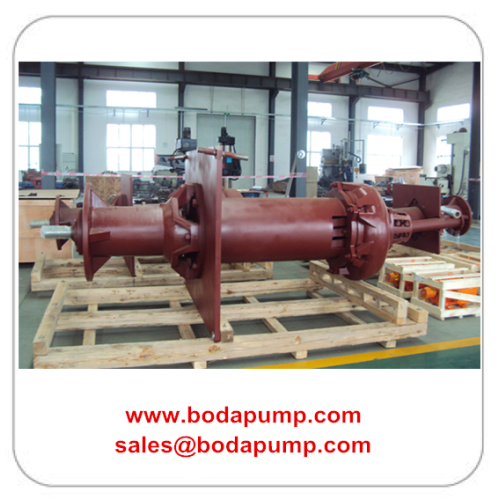

FGD Power Plant Sump Pump Description:

BV pumps are vertical, centrifugal slurry pumps submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties. Wet parts of type BV pump are made of abrasion-resistant metal. All parts of type BVR pump immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.

FGD Power Plant Sump Pump Typical Applications---
Sump drainage washdown
Floor drainage
Mill sumps
Carbon transfer
Monitoring
Magnetite mixing

Vertical Sump Slurry Pump Structure:

SP SPR VERTICAL SLURRY PUMP

SP SUMP PUMP INLET

BV SUMP PUMP PERFORMANCE PARAMETERS

Type	Allowable Mating Max. Power(Kw)	Range Of Performance					Impeller
		Capacity/Q		Head/m	Speed/rpm	Max Efficiency/%	No. of Vanes	Impeller Diameter/mm
		m³/hr	L/S	Head/m	Speed/rpm	Max Efficiency/%	No. of Vanes	Impeller Diameter/mm
40BV	15	19.44-43.2	5.4-12	4.5-28.5	1000-2200	40	5	188
65BV	30	23.4-111	6.5-30.8	5-29.5	700-1500	50	5	280
100BV	75	54-289	15-80.3	5-35	500-1200	56	5	370
150BV	110	108-479.16	30-133.1	8.5-40	500-1000	52	5	450
200BV	110	189-891	152.5-247.5	6.5-37	400-850	64	5	520
250BV	200	261-1089	72.5-302.5	7.5-33.5	400-750	60	5	575
300BV	200	288-1267	80-352	6.5-33	350-700	50	5	610

BVR SUMP PUMP PERFORMANCE PARAMETERS

Type	Allowable Mating Max. Power(Kw)	Range Of Performance					Impeller
		Capacity/Q		Head/m	Speed/rpm	Max Efficiency/%	No. of Vanes	Impeller Diameter/mm
		m³/hr	L/S	Head/m	Speed/rpm	Max Efficiency/%	No. of Vanes	Impeller Diameter/mm
40BVR	15	17.28-39.6	4.8-11	4-26	1000-2200	40	5	188
65BVR	30	22.5-105	6.25-29.15	5.5-30.5	700-1500	51	5	280
100BVR	75	64.8-285	18-79.2	7.5-36	600-1200	62	5	370
