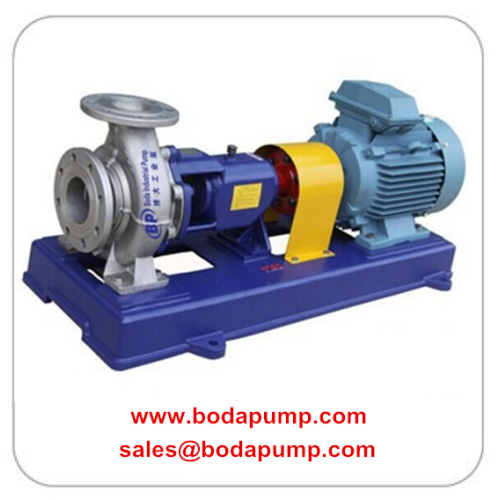

API610 Petrochemical Process Chemical Pump

Application:
Used for pumping clean or slightly polluted, cold or hot, chemically neutral or aggressive liquids. Especially used in:

■ Petrochemical process industry, chemical industry and coal industry

■ Paper and pulp industry and sugar industry

■ Water-supply industry and seawater desalination industry

■ Heating and air conditioning syetem

■ Powerstation

■ Environment-protect engineering and low temperature engineering

■ Ship and offshore industry,etc

Operation Data:

■ Size DN 25~400mm

■ Capacity: Q  up to 2600m3/h
■ Head: H up to 250m
■ Operation Pressure: P up to 2.5Mpa
■ Operation Temperature: T -80℃~+450℃

Medium:

■ Organic and inorganic acid of various temperature and concentration, such as sulphuric acid, nitric acid, hydrochloric acid and phosphoric acid.

■ Alkaline liquid of various temperature and concentration, such as sodium hydroxide, sodium bonate,etc.

■All kinds of salt solution

■ Various petrochemical product in liquid state, organic compound as well as other corrosive raw materials and products.

Note: We can provide various materials to comply with all the medium mentioned above. Please provide the detailed service conditions when you order, so that we can choose the suitable material for you.

Technical Data:
