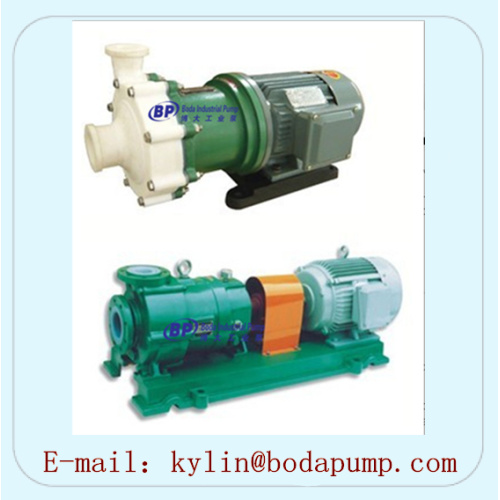

Fluorine Plastic Alloy Magnetic Pump

Name:Fluorine Plastic Alloy Magnetic Pump   Magnetic Pump   Fluorine Plastic Pump   CQB

Summarize:
CQB steel fluorine plastic magnetic pump seal removed, the use of indirect magnetic coupling drive, completely eliminating the drip of trouble, not to use contaminated sites.
As part of the pump over current use "fluorine plastic" manufacturing. It can continuously transport the concentration of acids, bases, strong oxidizing agents and other corrosive media, no damage, with fully sealed, no leaks, corrosion resistance and other advantages.

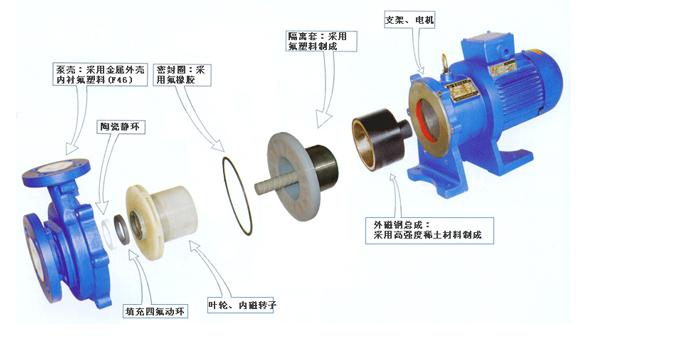

Structure:
CQB steel fluorine plastic magnetic pump to replace the static seal dynamic seal, the use of active magnetic coupling drive directly onto the motor shaft, pump room completely closed, indirect drive shaft through magnetic coupling with a magnet on the impeller rotation, with the structure compact, good looks, safety and energy-saving features.
The pump although the contact with the liquid part of the fluorine plastic, but the pump casing is metal, so the pump enough to withstand the weight of the pipe and mechanical shock.

Application:
Widely used in chemical, rare earth separation, pesticides, dyes, medicine, papermaking, electroplating, electrolysis, pickling, radio, foil, research institutions, industry, defense industry and other transport any concentration of acid, alkaline, oils, rare and precious liquid, toxic liquid, volatile chemical media. Particularly susceptible to leakage, flammable, explosive corrosive liquid.
