Product Description

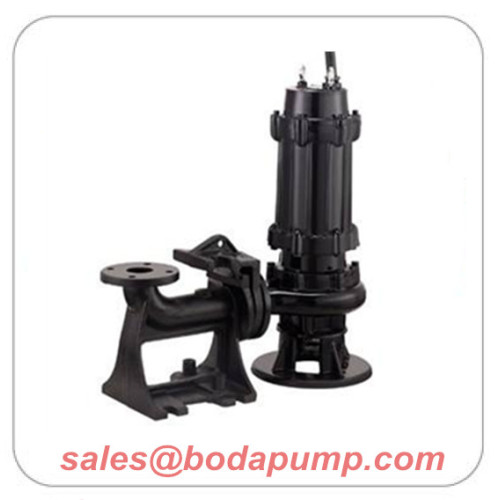

Irrigation Compressor Sewage Submersible Pump

General

WQ non-clogging submersible sewage pumps are new generation of products developed with the advaned technology abroad and on the base of the operational characteristics of pumps at home. Featuring distinguished energy conservation, winding and clogging resistance, as well as automatic installation and automatic control, etc. It is especially suitable for handling sewage containing solid particles and long fibre.

Operation Condidtions and Standard

Capacity: Up to 5500 m3/h

Head: Up to 60m

Medium Temperature: Not over 60°C

Description of Pump Type

For example: 80WQ40-15-4

80: Nominal diameter of pump discharge nozzle (mm)

WQ: Auto coupling submersible sewage pump

40: Rated flow rate (m3/h)

15: Rated head (m)

4: Rated power of matched motor (KW)

3. Technology Parameters:

Model	rotate speed	Power	Rate	Model	rotate speed	Power	Rate
Calibre - flow - head	(r/min)	(kw)	(%)	Calibre - flow - head	(r/min)	(kw)	(%)
(mm)(m3/h)(m)				(mm)(m3/h)(m)
25-8-22 -1.1	2825	1.1	38.1	150-200-30-37	1480	37	70
32-12-15 -1.1	2825	1.1	40	200- 300-7-11	970	11	73
40-15-15-1.5	2840	1.5	45.1	200- 250-11-15	970	15	74
40- 15-3-2 .2	2840	2.2	48	200- 400-10-22	1470	22	76
50- 20-7-0 .75	1390	0.75	54	200-400-13-30	1470	30	73
50-10-10 -0.75	1390	0.75	56	200-250-15-18.5	1470	18.5	72
50-20-15-1.5	2840	1.5	55	200-300-15-22	1470	22	73
50-15-25-2.2	2840	2.2	56	200-250-22-30	1470	30	71
50-18-30-3	2880	3	58	200-350-25-37	1480	37	75
50-25-32-5.5	2900	5.5	53	200-400-30-55	1480	55	70
50-20-40-7.5	2900	7.5	55	200-350-40-75	980	75	70
65-25-15-2.2	2840	2.2	52	250- 600-9-30	980	30	74
65-37-13-3	2880	3	55	250-600-12-37	1480	37	78
65-25-30-4	2890	4	58	250-600-15-45	1480	45	75
65-30-40-7.5	2900	7.5	56	250-600-20-55	1480	55	73
65-35-50-11	2930	11	60	250-600-25-75	1480	75	73
65-35-60-15	2930	15	63	250-800-12-45	1480	45	76
80- 40-7-2 .2	1420	2.2	52	300-500-15-45	980	45	70
80-43-13-3	2880	3	50	300-800-15-55	980	55	73
80-40-15-4	2890	4	57	300-600-20-55	680	55	75
80-65-25-7.5	2900	7.5	56	300-800-20-75	980	75	78
100- 80-10-4	1440	4	62	300-950-20-90	980	90	80
100- 110-10-5 .5	1440	5.5	66	300-1000-25-110	980	110	82
100-100-15-7.5	1440	7.5	67	350-1100-10-55	980	55	84.5
100-85-20-7.5	1440	7.5	68	350-1500-15-90	980	90	82.5
100-100-25-11	1460	11	65	350-1200-18-90	980	90	83.1
100-100-30-15	1460	15	66	350-1100-28-132	740	132	86.2
100-100-35-18.5	1470	18.5	65	350-1000-36-160	740	160	78.5
125-130-15-11	1460	11	62	400-1500-10-75	980	75	82.1
125-130-20-15	1460	15	63	400-2000-15-132	740	132	85.5
150- 145-9-7 .5	1440	7.5	63	400-1700-22-160	740	160	82.1
150-180-15-15	1460	15	65	400-1500-26-160	740	160	86.5
150-180-20-18.5	1470	18.5	75	400-1700-30-200	740	200	83.5
150-180-25-22	1470	22	76	400-1800-32-250	740	250	82.1
150-130-30-22	1470	22	75	400-1760-7.5-55	540	55	82.1
150-180-30-30	1470	30	73	500-2500-10-110	740	110	82

Submersible Sewage Pump
