high quality Submersible water pump

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Tianjin, Qingdao, Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Productivity:	500
Supply Ability:	500
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	ISO9901
HS Code:	4101201190
Transportation:	Ocean,Land,Air
Port:	Tianjin,Qingdao,Shanghai

Product Description

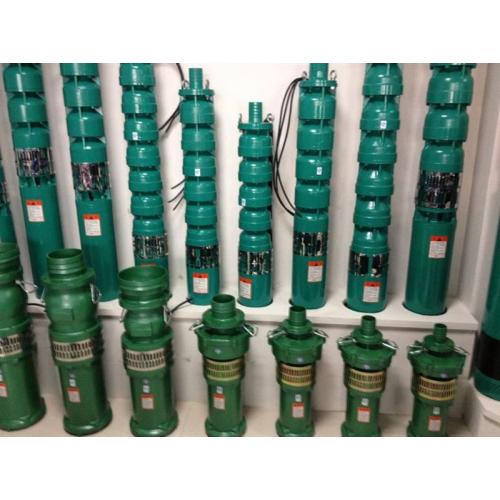

submersible water pump
1.installed underground
2.space-saving
3.quiet operation
4.Long life / low maintenance
Description:
submersible water pump
1.installed underground
2.space-saving
3.quiet operation
4.Long life / low maintenance
Application:
Applied to pumping such liquid which is clean, free from solid or abrasive substances or chemically neutral or close to the characteristics of water.
Technical Data:
Pump diameter: 3" 3.5" 4" 6" 8"
Outlet size: 1.0" 1.2" 1.5" 2" 3" 4"
Frequency:50HZ
Speed range:2850rpm
Operation Condition:
Maximum fluid temperature up to 30-60°C
Maximum sand content: 0.15-3.0%
Maximum immersion: 20-100m
Motor:
0.37KW-30KW
single-phase:220-240V
Three-phase:380-415V
Degree of protection: IP68
Insulation class: B
Material:
spare parts

material
Pump extermal casing
AISI 304 ss
impeller
plastic/AISI 304 ss/bras/Cast iron G20UNI5007/ Cast-Cu ASTM280
screw,bots,nuts
AISI 304 ss
Motor external casing

AISI 304 ss

Bottom support

Cast iron G20UNI5007/ Cast-Cu ASTM280/AISI 304 ss

Mechanical seal

Special seal for deep well(carbon-SIC/TC)

Bearing

AISI 304 ss/NSK

top cover

Cast iron G20UNI5007/ Cast-Cu ASTM280/AISI 304 ss

Shaft

AISI 304 ss
