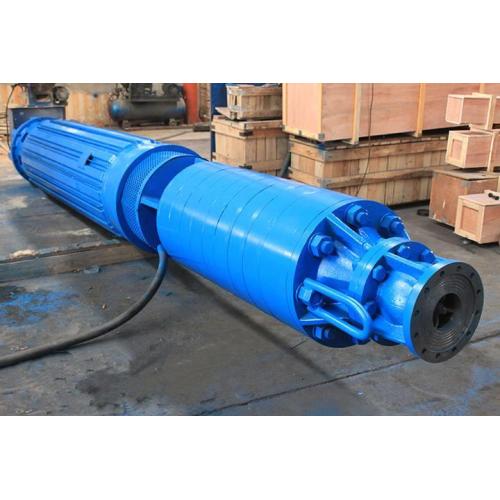

SCCY Long Shaft Submerged Pump

SCCY Long Shaft Submerged Pump

Performance Scope:

Capacity:Q2-400m3/h

Head: H5-100m

Working Temperature: T-20~+200℃

Structural Characteristics:

■safe and reliable connecting shaft structure

■Adopt multi-points support for the rotor component and pump rus safely and reliably.

■Adopt external or self-lubrication for sliding bearing.

■The impeller has submerged into medium when the pump begins to run, so startup become easy without air evacuation.

■Adopt two-runner casings(the diameter is greater than 80mm).It is small of radial force of rotors component, of shafts deflection and of wear and tear from sliding bearings, so long service life.

■ The pump runs clockwise looking from the motor end.

Application:

SCCY model power station sewage pumps are of vertical, single stage and single sunction, long shaft submerged pumps, available for all kinds of sewage conveying from power plants, chemical factories and waste water treatment plants.

It is mainly used in:

■ Thermal power factory

■ Chemical factory

■ Wastewater treatment factory

■ Steel factor, steels rolling mill

■ Paper mill

■ Cement factory
