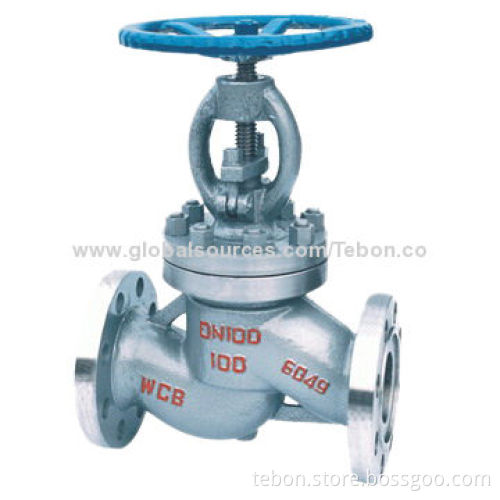

Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
  • Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa
Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa

Cast Steel Globe Valve, DN15-600, Pressure 1.0-42MPa

Get Latest Price
Payment Type:
T/T, Western union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western union
Product Description
Product Description
  • Key specifications:
    • Size: DN15-600, NPS1/2-24"
    • Pressure: 1.0-2.5MPa, 150-2500CL
    • Driving method: manual, worm gear pneumatic, electric actuator
    • Media: oil, gas, water
  • Technical specifications:
    • Design and manufacture: GB/T 12235
    • Structure length: GB/T 12221
    • End flange dimension: GB/T 9113, JB/T 79, HG20592
    • Inspection and test: JB/T 9092
  • Materials of main parts
    • Body: WCB/WC1/WC6/WC9/C5/CF8/CF8M/CF8C/CF3/CF3M
    • Disc: 25/1Cr13/2Cr13/1Cr18Ni9Ti/0Cr18Ni12Mo2Ti/20Cr1Mo1V/25Cr2Mov
    • Stem: 1Cr13/2Cr13/1Cr18Ni9/0Cr18Ni12Mo2Ti/20Cr1Mo1V/25Cr2Mov
    • Bonnet: WCB/WC1/WC6/WC9/C5/CF8/CF8M/CF8C/CF3/CF3M
    • Double end studs: 35CrMoA/0Cr18Ni9/0Cr17Ni12Mo2/25Cr2MoV
    • Hex nut: 45/35CrMoA/0Cr18Ni9/0Cr17Ni12Mo2/25Cr2MoV
    • Hand wheel: ASTM A47-32510
  • Size: DN15-600, NPS1/2-24"
  • Pressure: 1.0-2.5MPa, 150-2500CL
  • Driving method: manual, worm gear pneumatic, electric actuator
  • Media: oil, gas, water
  • Design and manufacture: GB/T 12235
  • Structure length: GB/T 12221
  • End flange dimension: GB/T 9113, JB/T 79, HG20592
  • Inspection and test: JB/T 9092
  • Body: WCB/WC1/WC6/WC9/C5/CF8/CF8M/CF8C/CF3/CF3M
  • Disc: 25/1Cr13/2Cr13/1Cr18Ni9Ti/0Cr18Ni12Mo2Ti/20Cr1Mo1V/25Cr2Mov
  • Stem: 1Cr13/2Cr13/1Cr18Ni9/0Cr18Ni12Mo2Ti/20Cr1Mo1V/25Cr2Mov
  • Bonnet: WCB/WC1/WC6/WC9/C5/CF8/CF8M/CF8C/CF3/CF3M
  • Double end studs: 35CrMoA/0Cr18Ni9/0Cr17Ni12Mo2/25Cr2MoV
  • Hex nut: 45/35CrMoA/0Cr18Ni9/0Cr17Ni12Mo2/25Cr2MoV
  • Hand wheel: ASTM A47-32510
