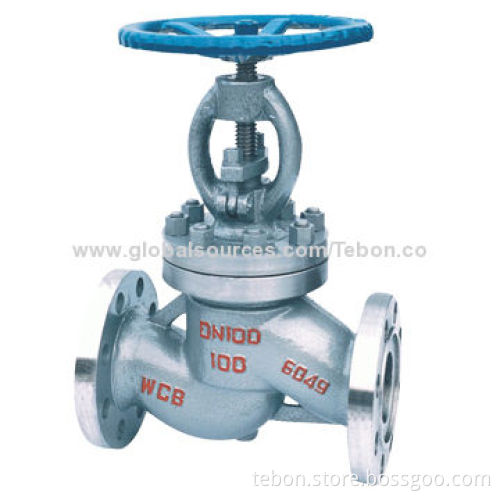

Cast Steel Globe Valve/Stop Valve, DN15-600, Pressure 1.0-42MPa
- Payment Type:
- T/T, Western union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T, Western union |
|---|
Product Description
Product Description
- Size: DN15-600, NPS1/2-24"
- Pressure: 1.0-2.5MPa, 150-2500CL
- Driving method: manual, worm gear pneumatic, electric actuator
- Media: oil, gas, water
- Design and manufacture: GB/T 12235
- Structure length: GB/T 12221
- End flange dimension: GB/T 9113/JB/T 79/HG20592
- Inspection and test: JB/T 9092
- Body: WCB/WC1/WC6/WC9/C5/CF8/CF8M/CF8C/CF3/CF3M
- Disc: 25/1Cr13/2Cr13/1Cr18Ni9Ti/0Cr18Ni12Mo2Ti/20Cr1Mo1V/25Cr2Mov
- Stem: 1Cr13/2Cr13/1Cr18Ni9/0Cr18Ni12Mo2Ti/20Cr1Mo1V/25Cr2Mov
- Bonnet: WCB/WC1/WC6/WC9/C5/CF8/CF8M/CF8C/CF3/CF3M
- Double end studs: 35CrMoA/0Cr18Ni9/0Cr17Ni12Mo2/25Cr2MoV
- Hex Nut: 45/35CrMoA/0Cr18Ni9/0Cr17Ni12Mo2/25Cr2MoV
- Hand wheel: ASTM A47-32510
