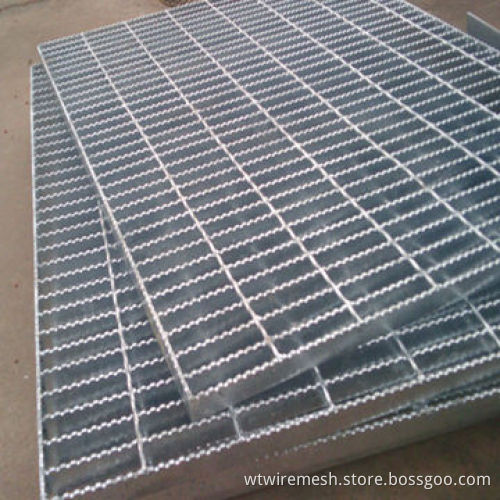

Plain steel grating

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

We produce three kinds of steel gratings, they are plain style steel grating, serrated style steel grating and I bar type steel grating

They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers

We can design and manufacture standard steel grating and in customized shapes per client's requirements

Product specification:

Bearing bar (load bar) specifications (mm): the specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10, the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4mm
Bearing bar pitch (center to center): 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available
Cross bar pitch (center to center): 38, 50, 76, 100, 101.6mm, also be according to client's requirement and 50, 100mm are recommended, America standard is available
Material: mild steel (low carbon steel) or stainless steel
Surface treatment: untreated, painting or hot dip galvanizing

Bearing bar (load bar) specifications (mm): the specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10, the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4mm

Bearing bar pitch (center to center): 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available

Cross bar pitch (center to center): 38, 50, 76, 100, 101.6mm, also be according to client's requirement and 50, 100mm are recommended, America standard is available

Material: mild steel (low carbon steel) or stainless steel

Surface treatment: untreated, painting or hot dip galvanizing
