Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Materials: low carbon steel bar, stainless steel steel bar

Steel bar 25x3--60x5mm, width and length: 0.3x1m, 0.5x1m, 1x1m, 1x2m, 3x3m and so on

Process: welded

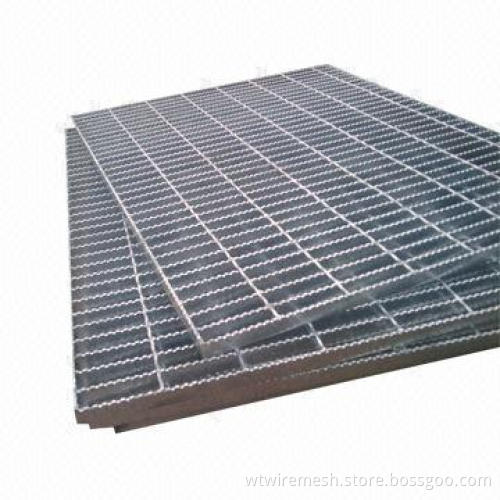

Type: serrated steel grating, common steel grating

Packaging: pallet

Others: can meet customized

Bearing bar (load bar)

Specifications (mm):

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4 and more
Bearing bar pitch (center to center): 12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm and more, also can be according to client's requirement and 30, 40, 60mm are recommended

America standard is available: 1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4), (19-w-2) and so on

Cross bar pitch (center to center): 38, 50, 76, 100, 101.6mm and more, also can be according to client's requirement and 50, 100mm are recommended, America standard is available

Material: Mild steel (low carbon steel) or stainless steel

Surface treatments: Untreated, painting or hot dip galvanizing

Steel grating standards:

China: YB/T4001-1998
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985

Bar grating is made by welding with flat steel and bars with certain distances

It goes through cutting, opening, edging and other processes

The products enjoy the features of high strength, light structure, high bearing, convenience for loading and other properties

The hot dipped zinc coating gives the product excellent anti-corrosion resistance

Bar grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects and environment projects

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; the specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4 and more

Bearing bar pitch (center to center): 12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm and more, also can be according to client's requirement and 30, 40, 60mm are recommended

China: YB/T4001-1998

USA: ANSI/NAAMM (MBG531-88)

UK: BS4592-1987

Australia: AS1657-1985
