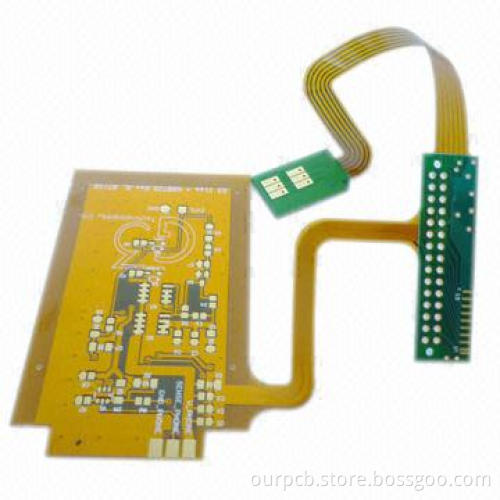

Custom-made Rigid Flexible PCB Design with Gold-plated Surface Finish and Carbon/Silver Ink Printing

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

Number of layers: 1 to 2 layers (flexible)

Base material thickness: 25, 50, 75, 100um, 1/2, 1, 2,3mil

Copper conductor thickness: 18, 35, 70um, 1/2, 1, 2oz

Materials: polyester and polyimide

Copper: RA, ED

Minimum hole diameter: O 0.2mm

Minimum line/space width: 0.1mm

Minimum annular ring: 0.1mm

Maximum panel size: 400 x 400mm

Plating: solder, nickel, gold

Volume resistivity: 1 x 1015 (IPC-TM-650 2.5.6.17)

Dissipation factor (1MHz): 0.04 (MIL-P55617)

Solder heat resistance: 300°C/10 seconds

Dielectric strength: 5kV (IPC-TM-650 2.5.6.1)

Insulation resistance: 1000mW (IPC-TM-650: 2, 6, 3, 2 atambient)

Peeling strength (180° direction): 1.0kg/cm (IPC-TM-6502.4.9)

Flammability: 94 V-0 (UL94)

Surface resistance: 5 x 1012 (IPC-TM-650 2.5.6.17)

Dissipation factor (1MHz): 0.04 (MIL-P-55617)

RoHS Directive-compliant
