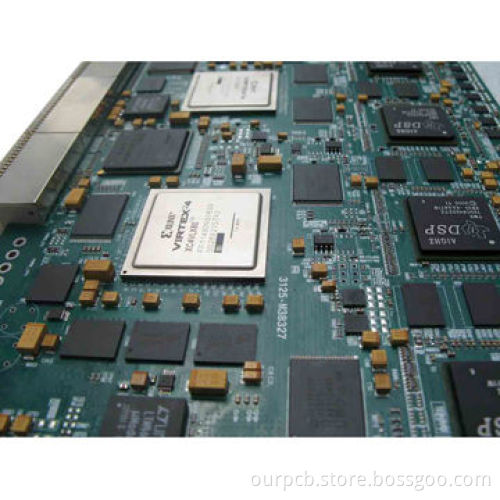

High-density multilayer PCB

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

PCB board manufature and PCB assembly services:

PCB design, PCB layout and PCB production
Every board is to IPC class II or higher standard
All boards are UL-approved and made in ISO-9001 certifiedfacilities
100% tested (flying probe or E-test)
Free panelizing and PCB design check with no extra cost
24/7 engineering support, we work with customers closely toensure the boards are standards compliant

Layers: 1-30

Materials: FR-4, CEM-1, CEM-3, high TG, FR4 halogen-free, FR-1,FR-2, aluminum

Board thickness: 0.2-7mm

Maximum finished board side: 500 x 500mm

Minimum drilled hole size: 0.25mm

Minimum line width: 0.075mm (3mil)

Minimum line spacing: 0.075mm (3mil)

Surface finish/treatment: HALS/HALS lead-free, chemical tin,chemical gold, immersion gold immersion silver/gold, OSP, goldplating

Copper thickness: 0.5-4.0oz

Solder mask colors: green/black/white/red/blue/yellow

Inner packing: vacuum packing, plastic bag

Outer packing: standard carton packing
