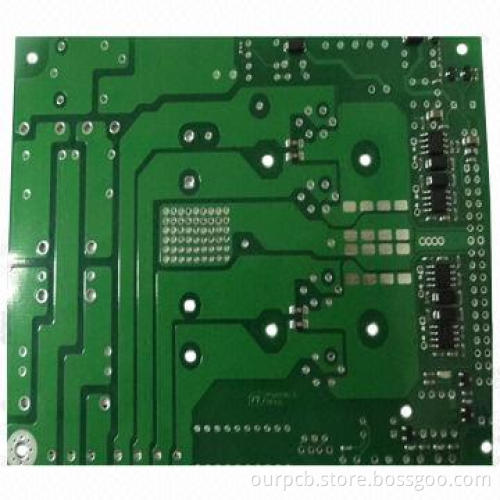

High-quality PCB Assembly

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

Number of layer: 1, 2, 4 or 6, up to 18 layers

Order quantity: 1 to 50,000

Board shape: rectangular, round, slots, cutouts, complex,irregular

Board type: rigid, flexible, rigid-flexible

Board material: FR-4 glass epoxy, FR-4 high Tg, RoHS compliant,aluminum, Rogers and more

Board cutting: shear, V-score, tab-routed

Board thickness: 0.2-4.0mm, flex 0.01-0.25mm

Copper weight: 1.0, 1.5, 2.0oz

Solder mask: double-sided green LPI, also support red, white,yellow, blue, black

Silkscreen double-sided or single-sided in white, yellow, blackor negative

Silkscreen min line width: 0.006'' or 0.15mm

Max board dimensions: 20 x 20-inch or 500 x 500mm

Min trace/gap: 0.10mm, or 4mils

Min drill hole diameter: 0.01'', 0.25mm, or 10mils

Surface finishes: HASL, nickel, immersion gold, immersion tin,immersion silver, OSP and more

Board thickness tolerance: ±10%

Copper weight tolerance: ± 0.25oz

Minimal slot width: 0.12'', 3.0mm, or 120mils

V-Score depth: 20-25% of board thickness

Design file format: Gerber RS-274, 274D, Eagle and AutoCAD'sDXF, DWG
