Gabion Box for Western Europe agate river
- Incoterm:
- FOB
- Min. Order:
- 200 Set/Sets
- Min. Order:
- 200 Set/Sets
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000 sets/week |
| Supply Ability: | 2000 sets/week |
| Incoterm: | FOB |
| Certificate: | ISO9001:2001 |
Description
Gabion baskets/gabion cage/gabion wall are available in a variety of
different sizes. They come in 1/2 or 1 meter high, and 2, 3, or 4 meters
long. There are several types and colors of rock available from common
river type round rock, to multi-colored light and dark fractured rock.
1. Gabion basket /gabion mattress is made of steel mesh with the type 6*8mesh.
2. The diameter of the wire mesh has normally two types: 2.7/3.7mm or 2.0/3.0 mm.
3. The gabion element is in the shape of block or regular cube size. These special wire bins are made of robust wire, filled with the vibrations at the quarry and transport are accompanied by the lifting straps.
4. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
5. Wires of gabion basket can be classified into mesh wire, selvedge wire and tie wire. The selvedge wire is thicker than the other two wires.
| Surface Treatment | Mesh Size | Mesh Wire (mm) | Selvedge Wire (mm) | Lacing Wire (mm) |
|
Heavy Hot dipped Galvanized or Golfan galvanized and PVC coating |
60*80 |
2.0mm/3.0mm 2.2mm/3.2mm |
2.8mm/3.8mm 3.0mm/4.0mm |
1.8mm/2.8mm 2.0mm/3.0mm |
|
80*100 80*120 |
2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm |
3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm |
2.2mm/3.2mm | |
|
100*120 100*150 |
2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm |
3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm |
2.2mm/3.2mm | |
| 120*150 |
2.2mm/3.2mm 2.5mm/3.5mm 2.7mm/3.7mm |
3.0mm/4.0mm 3.2mm/4.2mm 3.4mm/4.4mm |
2.2mm/3.2mm |
| Surface Treatment | Mesh Size | Mesh Wire (mm) | Selvedge Wire (mm) | Lacing Wire (mm) |
|
Heavy Hot dipped Galvanized or Golfan galvanized (5% or10% Aluminium+ Zinc) |
60*80 |
2.0mm-2.2mm |
2.8mm-3.0mm |
1.8mm-2.0mm |
|
80*100 80*120 |
2.2mm-2.7mm |
3.0mm-3.4mm |
2.2mm | |
|
100*120 100*150 |
2.2mm-2.7mm | 3.0mm-3.4mm | 2.2mm | |
|
120*150
|
2.2mm-2.7mm | 3.0mm-3.4mm |
2.2mm |
Production machines:
Applications
1. Control and guide of water or flood
2. Preventing of rock breaking
3. Rock fall protection
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
8. Port project
9. Keep off dust wall
10.roadway protection.

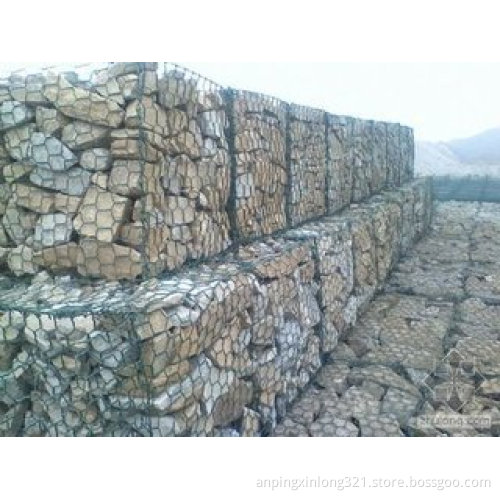

Some Construction Cases:
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
5. 15 years warranty depends to different products.
6. Accept Changing or Refunding if the products cannot be installed rightly.
1. Reinforcing welded wire mesh panels Payment :
T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30% deposit,
70% L/C st sight
2. Reinforcing welded wire mesh panels Delivery:
within 15 days after receiving the advance payment
