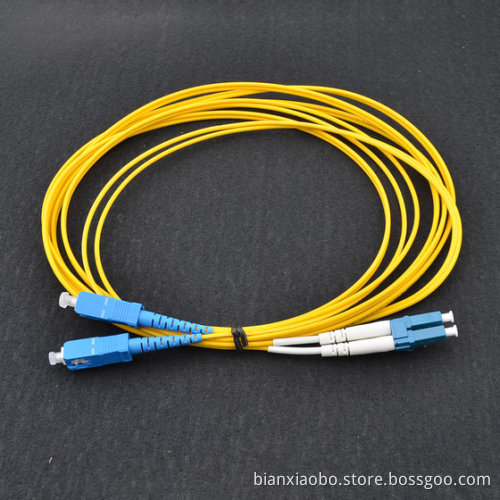

SC-LC Fiber Optic Patch Cord G652D SM/MM Simplex/Duplex
- Payment Type:
- T/T, L/C, D/A, D/P, Western Union
- Incoterm:
- FOB
- Min. Order:
- 50 Piece/Pieces
- Min. Order:
- 50 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs per week |
| Supply Ability: | 10000 pcs per week |
| Payment Type: | T/T,L/C,D/A,D/P,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,ROHS,UL |
| Transportation: | Ocean,Land,Air |
SC-LC Fiber Optic Patch Cord G652D SM/MM Simplex/Duplex
Application
1.Telecommunication
2.Computer Networks
3.CATV networks
4.Active device termination
Features
1.Low insertion loss and High Return Loss.
2.Fully compliant with standards of IEC and YD-T826/1996.
3.Temperature stability: Operating temperature:-20 to +75°c.
4.High durability,more than 500 times mating.
5.individual package with detail information label.
6.All patch cords are 100% tested.
Ordering information
1.Connector 1.LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.Connector 2.LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2.Ferrule interface type:UPC,APC
3.Fiber type;singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4.Fober dimeter(mm):Φ0.9, Φ2.0 ,Φ3.0
5.Fiber length:Customized length
Specification
| Parameter | Single mode | Multimode |
| Insertion Loss | ≤0.3db | ≤0.2db |
| Return Loss | ≥50db(PC) ≥65db(APC) | ≥40db |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2db typical change,1000 matings | |
| Interchangeability | ≤0.3db | |
| Tensile strength | >10kg | |
