Indoor fiber optic cable GJFJV 1-12 cores, Kevlar strength memeber, PVC/LSZH

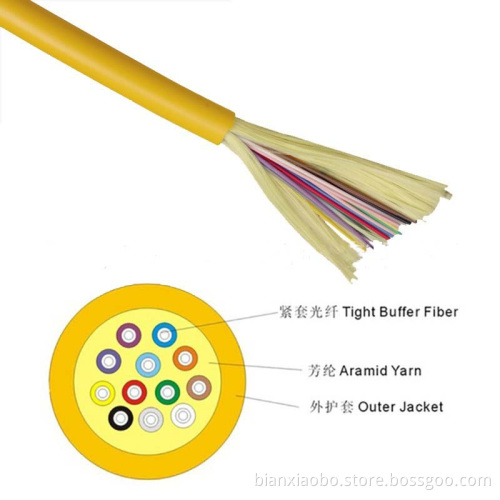

The Simplex cable uses single 900μm or 600μm tight buffered fibre as optical transmission medium, covered with aramid yarn as Strength member with high tensile strength
then extruded with a PVC or LSZH sheath (low smoke ,zero halogen ,Flame retardant ).
Excellent strippability with tight buffered fibre. Soft ,it is easy for stripping

Characteristics:
1.Tight buffer fibre ease of stripping
2.Tight buffer fibre have excellent flame-retardant performance
3.Aramid yarn as strength member make cable have excellent tensible strength
4.The jacket anti-corrosion,anti-water,anti-ultraviolet radiation, flame-retardant and harmless to environment etc.

Application:
1.Optical fibre jumper or pigtail
2.Indoor riser level and plenum level cable distribution
3.Interconnect between instruments,communication equipments
4.Office cabling & Computer room cabling

Technical Parameters:

Cable Code	Diameter(MM)	Weight(Kg/Km)	Tensile Strength Long/Short term(N)	Crush Resistance Long/Short term(N)	Bending Radius Dynamic/Static(MM)	Jacket Material
GJFJV-02	4.1±0.25	12.4	200/660	300/1000	20D/10D	PVC/LSZH
GJFJV- 04	4.8±0.25	16.2	200/660	300/1000	20D/10D	PVC/LSZH
GJFJV-06	5.2±0.25	20	200/660	300/1000	20D/10D	PVC/LSZH
GJFJV-08	5.6±0.25	26	200/660	300/1000	20D/10D	PVC/LSZH
GJFJV-10	5.8±0.25	28	200/660	300/1000	20D/10D	PVC/LSZH
GJFJV-12	6.4±0.25	31.5	200/660	300/1000	20D/10D	PVC/LSZH
GJFJV-24	8.5±0.25	42.1	200/660	300/1000	20D/10D	PVC/LSZH
