Product Description
Product Description

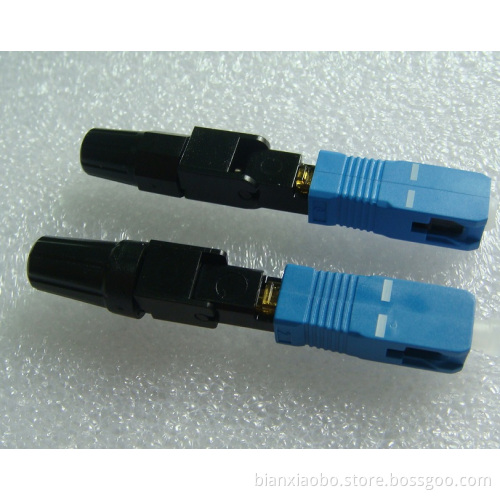

Fiber Optic SC Fast Connector
FTTH Fast SC Connector. Quick assembly field SC connector
Specifications
- SC/UPC Field Assembly Connector, body length:58mm
- No need splice machine, easy operation
- Front push type lock.
- Based on unique box-building crimping technology
- Axially firm fitting of optical fibers,reducing any performance degradation due to loss in the matching gel.
- Uninterrupted fitting and connecting technology,hence signals are free of impact from external force
- The naked fiber,tight buffer and cable,etc, can fully meet the enviromental requirments from the terminals customer.
- Integrated protection of the casing to withstand harsh outdoor environment
- High success rate and easiness in installation with average splicing time of 30sec
- Applicable for FTTx optical fiber splicing and for repairing any damaged lines to realize firm and reliable splicing of fibers.
| ITEM | Technical Parameters |
| Applicable for | 3.1*2.0mm Drop cable&250um&900um Fiber |
| Optical fiber diameter | 125Um(G652D,657A&657B) |
| Tight buffer diameter(um) | 250um |
| Fiber mode | Single mode |
| Operation time | About 30s(no fiber cut) |
| Average Insert loss | <= 0.30dB(1310nm&1550nm) |
| Return loss | >45dB |
| Fastening strength of naked fiber | >5N |
| Fastening strength of naked fiber holder | >8N |
| Tensile strength | >50N |
| Using temperature | -40~+75°C |
| On-line tensile strength(50N) | IL <= 0.2Db |
| Repeatability(10times) | IL <= 0.2Db |
