Fiber Optic Connector LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC
- Payment Type:
- T/T, L/C, D/A, D/P, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 1000000pcs per week |
| Supply Ability: | 1000000pcs per week |
| Payment Type: | T/T,L/C,D/A,D/P,Western Union |
| Incoterm: | FOB |
| Certificate: | CE,RoHS,UL |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description

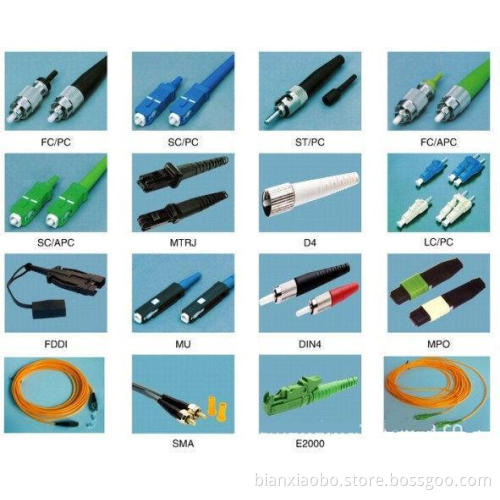

Fiber Optic Connector LC,SC,ST,FC.MU,MPO,
SC/APC,FC/APC,LC/APC.MU/APC
Skype: ls.telecom
| Application |
| 1.Usable for aerial installation |
| 2.Long-haul communication systems |
| 3.Junction communication systems |
| 4.Subscriber;network systems |
| 5.Local area network systems |
| Advantages |
| 1.High tensile strength of stranded wireds meet the requirement of self-supporting and reduce the installation cost |
| 2.Good mechanical and temperature performance |
| 3.High strength loose tube that is hydrolysis resistant |
| 4.Specail tube filling compound ensure a critical protection of fiber |
| 5.PSP enhancing moisture-proof |
| 5.Two parallel steel wires ensure tensile strength |
| 6.Long delivery length and low price |
| Model NO. | optical fiber patch cord |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC;Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Singlemode) OS1 50/125, 62.5/125 (Multimode) OM2 and OM1 50/125 |
| 10G(Multimode) OM3 | |
| Cable Type | Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber |
| PVC or LSZH | |
| Polishing Manner | UPC,SPC,APC (8°and 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) | UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) |
| Tested by JDS RM3750 | |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) |
Ferrule
Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex
Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤
U ≤ 50nm Tested by DORC ZX-1 |
