Gold mining for solid liquid of coal metallurgy slurry pump

Overview

 Capacity Range: 12-5400 m³/h

 Head Range: 5- 68m

 Speed Range: 200-3800rpm

 Power Range: 15-1200kw

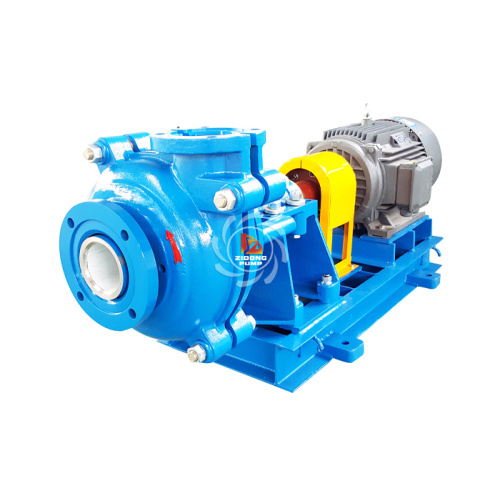

ZH High Chrome Alloy Slurry Pumps are single-stage, single-suction and cantilevered, double casing, horizontal, centrifugal ,heavy duty durable design.

Parts in contacting with the medium are made of latest wear-resistance 27% chrome alloy white iron with hardness 62HRC over,

which has an highly abrasive for maximum resistance to strong abrasive, coarse particle.

They are widely used for mining, coal, metallurgical, power, building material and other industrial departments. This series of pump

is suitable for various liquids performance, which is the first select product for handling mine mill slurry and tailing slurry.

Basing on medium condition can choose different materials as A05, A07, A49 etc.

Advantages of Zidong Pump Features

1. Modular design, easy to maintain,low spare cost due to high standardization;

2. Wide options of impellers of standard 5vanes , 4vanes high efficiency and 2vanes non-clogging;

3. 27% Chrome alloy hard metal, thick rubber and polyurethane pump lining are available and can be replaced with each other;

4. Standard ductile iron pump body, can withstand higher working pressure;

5. Famous brand bearing components can improve reliability, prolong bearing life and reduce lubrication cost;

6. Reliable shaft seal, packing seal, expeller seal, or mechanical seal are available;

7. Multi purpose design reduces inventory requirements and interchangeability;

8.  Drive types: Different connection methods (ZVZ,DC,CV,CRZ) with motor for selection, satisfy the requirements on different

     installation condition and different capacity & head.

9. The discharge direction of the pump can be oriented to any 8 positions based on different installation condition.
