Corrugator Belt
- Payment Type:
- T/T, L/C, D/A, D/P, Western Union
- Incoterm:
- FOB
- Min. Order:
- 50 Square Meter
- Min. Order:
- 50 Square Meter
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shijiazhuang,Hebei |
|---|---|
| Productivity: | 500000 sqm per week |
| Supply Ability: | 5000000 sqm per month |
| Payment Type: | T/T,L/C,D/A,D/P,Western Union |
| Incoterm: | FOB |
| Certificate: | ISO 9001 |
| Transportation: | Ocean,Air |

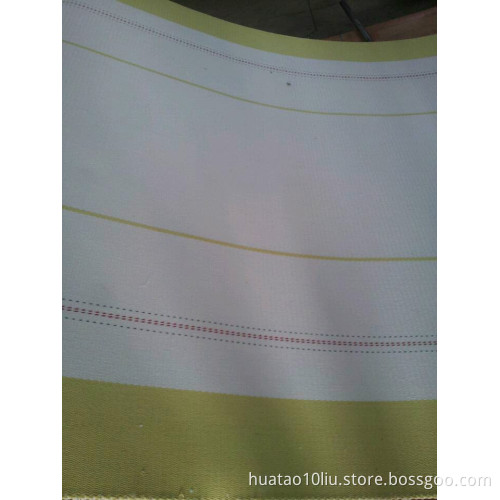

Corrugated paper belt , Corrugator Belt, Polyester Solid woven belt
HuaTao Paper Machine Fabric Factory
3w papermakingtech com
maple.zhao(at)huataogroup com
Skype:huatao03, huatao04,huatao05
PRODUCT:
The weaving belts of single weft and multi-layer warps are widely used in the corrugated board
production lines, Our produce are:
High-speed Corrugator Belt with low noise WSD-9G suitable for average linear speed 200m/min
Mid-speed Corrugator Belt WSD-10Z suitable for average linear speed 130m/min
High-speed Corrugator Belt with Kevlar(low noise) WSD-95G applocable to the corrugating equipment which cardboard width is changed often
Traction Belt / Stack Belt QYD-WDD Belt width:(300-2000)mm
Pneumatic Covering Belt (200-3000) mm
Manufacture various kinds of industrial belts according to customer's requirements.
Products Features:
Tensile strength: Warp direction (63-70) Mpa. in dry mode;
Heat resistance: Raw materials are polyester synthetic fiber, softening point≥260℃
Moisture adsorption: Quick absorption and emission of heat, therefore cardboard can be quickly dried
Air-permeability: Up to 2.08m3/m2 min, under 40mm water column pressure, through CCEP test
Seams: Belt seam part is fabricated with imported steel fasteners and filled with rubber,
flat surface, heat-resistance, fastness and non-marking
Suitbalility: Suitable for all types of corrugators, various cardboards and some partcular
operation mode
Geometrical dimension: Steady belt dimension, high weaving density, low stretching and contraction and
good contact between belt surface and cardboard
Service life: As long as the same products imported abroad.
Rubber Seam Feature:
Belt seam part is fabricated with imported steel fasteners and filled with rubber
Resists tearing, non-abscission
Resists abrasion
Resists heating: top up to 230℃
Flat surface. Neither damage flat press device nor damage outer rubber of driving-roller
Smooth surface, non-marking, in favor of printing
Stabilizes transmission, prevents heavy roller from jolting
For a longer service life
Ready-made for preprinting
Suitable for various kinds of heavy-roller corrugators, especially for the new-type
Corrugators with flat press device.
