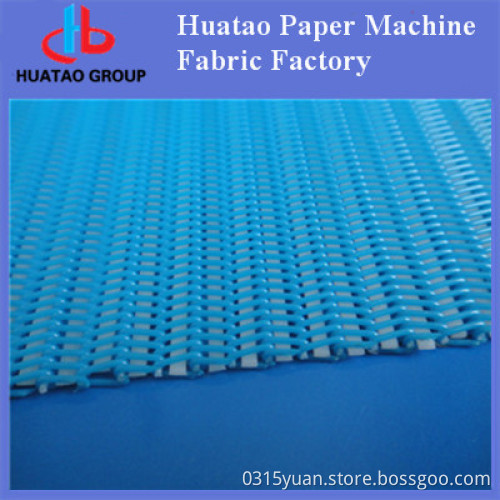

Polyester Spiral Press Filter Belt

Polyester Spiral Press Filter Belt

Belt for steam press (Dynastin)/fabric belts

Model: Htmillde loop1

Dimensions: w=2650mm x 1=11940 mm with mech.fastener (joining seam wire)

W=2650 x 1=5100 mm with mech.fastener (joining seam wire)

Material :Polyester 100%

Permeability: 360 cfm

Thickness: 2.50mm

Warp Dia: 0.70mm

Weft dia: 0.90mm

elongation at failure: 18-20%

Apply working temerature(MAX): 150centigrade

Polyester Spiral Press Filter Belt:

This kind of polyester spiral belt is made of polyester spiral dryer fabric which is filled with stuff to reduce the air permeation and to intensitive the opening, hence to reduce the material loss from the mesh opening.
Polyester spiral press filter belt is suitable for high-pressure press-filter washer, horizontal belt washer, pulp-liquor separator and netting belt coal-washer. It has been extensively used in all kinds of industries such as printing and dying, food, salt industry, pharmaceutical, environment protection, process hides, shoe-making, clothing, pottery and other conveyable belt est.

Description

Polyester Spiral Filter Belt

This kind of polyester spiral belt is made of polyester spiral dryer

fabric which is filled with stuff to reduce the air permeation and to intensitive the opening, hence to reduce the material loss from the mesh opening.

Specification:

Model: super loop, large loop, middle loop, small loop

CFM: 280-570

Thickness: 1.87-3.03 mm

Weight: 1.5-2.3 kg/m2

Suitable for:

high-pressure press-filter washer,

horizontal belt washer,

pulp-liquor separator and netting belt coal-washer.

Used in:

all kinds of industries such as printing and dying, food, salt industry, pharmaceutical, environment protection, process hides, shoe-making, clothing, pottery and other conveyable belt est.
