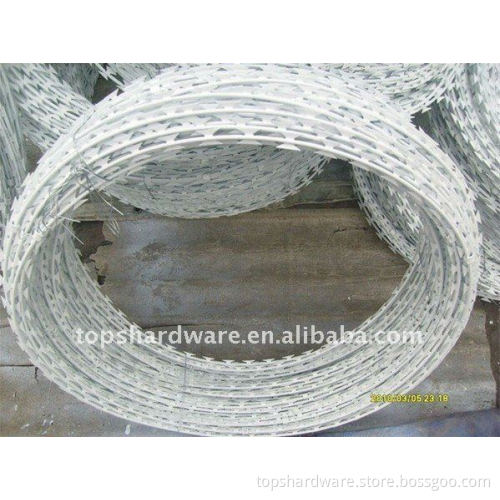

Concertina electro Galvanized Razor Wire

Specifications Barbed Tape Concertina (BTC);

Barbed Tape Obstacle (BTO)

razor barbed wire,barbed iron wire,concertina razor barbed wire

razor barbed wire,barbed iron wire,concertina razor barbed wire
Materials:Galvanized steel plate, hot dipped galvanized wire   Barbed Tape Wire Specification:

Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-10.15.22	Cross type
600mm	86	14M	BTO-10.15.22	Cross type
700mm	72	12M	BTO-10.15.22	Cross type
800mm	64	10M	BTO-10.15.22	Cross type
960mm	52	9M	BTO-10.15.22	Cross type

Razor Blade Specification:

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	25±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	25±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	35±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	36±1
BTO-28		0.5±0.05	2.5	28	15	46±1
BTO-30		0.5±0.05	2.5	30	18	46±1
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	101±2

Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
