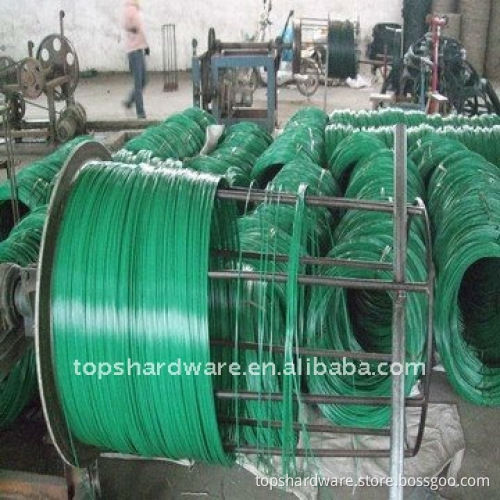

colored wire pvc coated wire

Specifications Material:pvc coated wire is made of low carbon steel wire,copper wire,stainless steel wire,galvanized wire,etc

Material:pvc coated wire is made of low carbon steel wire,copper wire,stainless steel wire,galvanized wire,etc Color: green, red, blue ,black, white ...Other colors also available on request   ) Wire diameter.: 0.7mm / 0.9mm - 3.5mm / 6.0mm 2)PVC coated rate:0.6-1.0mm 3)Tensile strength: 40-85kg/mm2 4) Weight:25kgs/roll,50kgs/roll,100kgs/roll or as customers' requirement Packaging Detail :1.lined with P.V.C strips and wrapped with plastic or hessian cloth                              2.In coils of 50m, 100m, 150m, 200m, 500m,and so on                              3. in spider packing then into cartons                              4.Or according to customers requirement.  PVC Coated Wire


BWG	Diameter	After Coated	Color
8#	4.06mm	4.99mm	As request
10#	3.25mm	4.15mm	As request
12#	2.64mm	3.20mm	As request
14#	2.03mm	2.60mm	As request
16#	1.63mm	2.00mm	As request
18#	1.22mm	1.52mm	As request
20#	0.91mm	1.20mm	As request
22#	0.71mm	1.00mm	As request
24#	0.56mm	0.86mm	As request
26#	0.46mm	0.70mm	As request
28#	0.375mm	0.68mm	As request
30#	0.315mm	0.60mm	As request
33#	0.250mm	0.50mm	As request
35#	0.210mm	0.48mm	As request
