2012 hot sale electric welding electrode er70s-6

Get Latest Price

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China (Mainland)

Product Description

Specifications ISO9001 & SGS

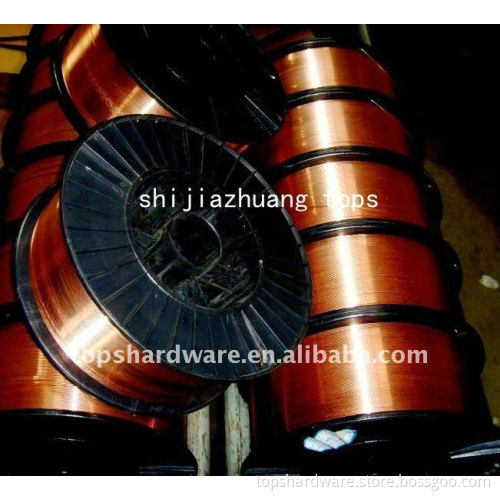

mig co2 welding wire ER70S-6

Dia.:0.8mm-1.6mm

Packing:5kg,12.5kg,15kg,20kg/plastic spool

Low splash

co2 welding wire ER70S-6

Description:
ER70S-6 is a kind of mild steel copper coated welding wire , suitable for 100% CO2 and Argon & CO2 mixed gas protective welding with stable feasibility , good welding seams , less spatters and excellent welding process properties.
Application:
Used to weld ship building steel ( A , B , D , E , A36 , D36 , E36 ) and equivalent mild steel or 550 Mpa grade mild alloy steel , such as container building , construction machine , railway construction , pressure vessel for semi-auto or automatic gas shielded welding.
Conform with:
GB/T ER50-6 DIN SG2 JIS YGW12
AWS ER70S-6 BS A18 EN G3Si1

Wire Size	Spool Size	Net Weight
0.8mm 1.0mm 1.2mm 1.6mm	D100mm D200mm D270mm D300mm K300mm	1kg,5kg,15kg,18kg,20kg

chemical composition of welding wire(%)	C	Mn	Si	P	S	Cr	Ni	Cu
	0.06~0.15	1.40~1.85	0.80~1.15	≤0.025	≤0.035	-	-	≤0.50
Mechanical Properties or Deposited Metal	Yield strengthσ0.2(Mpa)		Tensile strengthσb(Mpa)		Elongationδ5(%)		AKV impact(J)
	≥420		≥500		≥22		≥27(-29)

Wire Size (mm)	φ0.8	φ1.0	φ1.2	φ1.6	Welding position
Welding current(A)	40~140	50~220	80~350	120~550
Please be noted	Wire shall be stocked in dry.open the packs just when welding to avoid the wire rust.
	Before welding please clean out the oil,rust,water etc from the work parts
