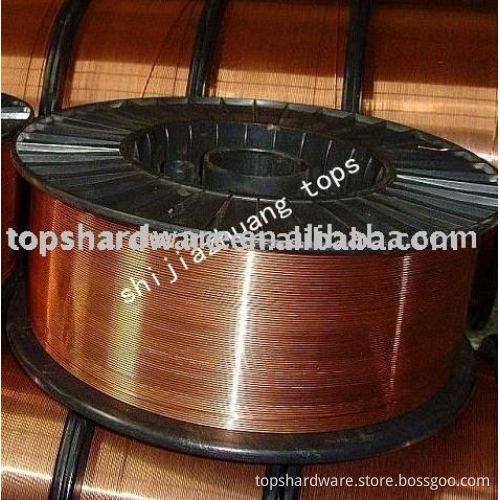

SG2/ER70S-6 Mig welding wire 1.2mm

Specifications MIG welding wire(copper coated)

1.Dia :0.8-1.6mm

2.packing:5Kg,15Kg

3.high quality and lower price

4.ISO9001:2000

CO2 Mig welding wire/sg2 welding wire/er70s-6 wire:   Application:
Used  to  weld  ship building steel ( A , B , D , E , A36 , D36 , E36 ) and  equivalent mild  steel or 550 Mpa  grade  mild alloy steel ,  such as  container  building , construction machine,railway construction,pressure vessel for semi-auto or automatic gas shielded welding.
Conform with:
GB/T ER50-6 DIN SG2 JIS YGW12
AWS ER70S-6 BS A18 EN G3Si1

Wire Size	Spool Size	Net Weight
0.8mm 1.0mm 1.2mm 1.6mm	D100mm D200mm D270mm D300mm K300mm	1kg,5kg,15kg,18kg,20kg



chemical composition of welding wire(%)	C	Mn	Si	P	S	Cr	Ni	Cu
	0.06~0.15	1.40~1.85	0.80~1.15	≤0.025	≤0.035	-	-	≤0.50
Mechanical Properties or Deposited Metal	Yield strengthσ0.2(Mpa)		Tensile strengthσb(Mpa)		Elongationδ5(%)		AKV impact(J)
	≥420		≥500		≥22		≥27(-29)

Application:
Used  to  weld  ship building steel ( A , B , D , E , A36 , D36 , E36 ) and  equivalent mild  steel or 550 Mpa  grade  mild alloy steel ,  such as  container  building , construction machine , railway construction ,  pressure vessel for semi-auto or automatic gas shielded welding.
Conform with:
GB/T ER50-6 DIN SG2 JIS YGW12
AWS ER70S-6 BS A18 EN G3Si1

Wire Size	Spool Size	Net Weight
0.8mm 1.0mm 1.2mm 1.6mm	D100mm D200mm D270mm D300mm K300mm	1kg,5kg,15kg,18kg,20kg



chemical composition of welding wire(%)	C	Mn	Si	P	S	Cr	Ni	Cu
	0.06~0.15	1.40~1.85	0.80~1.15	≤0.025	≤0.035	-	-	≤0.50
Mechanical Properties or Deposited Metal	Yield strengthσ0.2(Mpa)		Tensile strengthσb(Mpa)		Elongationδ5(%)		AKV impact(J)
	≥420		≥500		≥22		≥27(-29)
