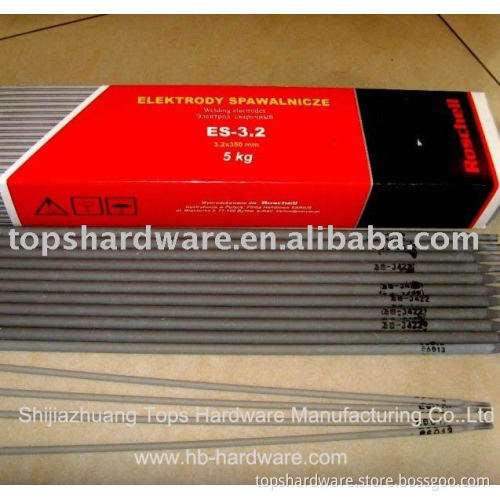

aws e 7018 welding electrode

Specifications welding electroeds/rod:

1.Mild steel Electrodes E6013,E7018

2.Dia:2.5-4mm

3.length:300-500mm

4.package:5Kg/box,4boxes/carton

Welding electrodes/rod Mild steel(E6013,E7018):   Description:
AWS E6013 is a low-carbon steel electrode with a high titaniume coating and can be used on AC. or DC . It  has excellent welding technological properties .  The  arc  is  stable .  The spatter is small. The slag viscosity is moderate. It can be used freely . The slag  is  easy to clean . The welded seam is smooth  and fine and easy to restrike the arc.
Application:
Suitable  for  welding sheet  metal  structure made of low-carbon steel ,such as ships, vehicles, building, and general machinery.

Chemical Composition of Wire(%):

C	Mn	Si	S	P
≤0.12	0.3-0.6	≤0.35	≤0.035	≤0.040

Mechanical Properties of Deposited Metal:

Test Item	σb(MPa)	σc(MPa)	δs(%)	Akv(°C)(J)
Guarantee Value	≥420	≥330	≥17	-

Recommended Welding Current:

Electrode Diameter(mm)	2.0	2.5	3.2	4.0	5.0
Current Range(A)	40-70	50-80	80-120	150-190	180-240
