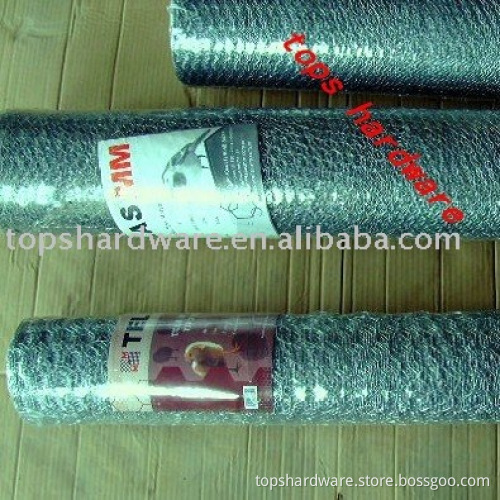

hexagonal wire netting

Specifications 1material:Galvanized Iron Wire

2type:Electric Wire Mesh

3Aperture:3/8''-4''

4Wire Gauge:0.35mm-3.1mm

  Hexagonal wire netting is also known by the name of chicken mesh . Hexagonal wire netting is manufactured in galvanized wire and galvanized drawing wire .  It  is  extensively used in building as reinforcement of the roof and floor , light , fecing for poultry farms , bids cages.tennis couts and fish garden,and children playground.
·Hex. wire netting, galvanized after weaving
·Hex. wire netting, galvanized wire before weaving
·Hex. wire netting, pvc-coated
·Hex. wire netting of stainless steel
·Hex. wire netting in normal twist
·Hex. wire netting in reverse twist
Packing: Each roll wrapped with water proof paper or plastic shrink packing

Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M)
Mesh		Wire Gauge(BWG)	Reinforcement
Inch	mm	(BWG)	Width(ft)	Strand
1"	25mm	22,21,20,18	2’	1
1-1/4"	32mm	22,21,20,18	3’	2
1-1/2"	40mm	20,19,18	4’	3
2"	50mm	20,19,18	5’	4
3"	75mm	20,19,18	6’	5

Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M)
Mesh		Wire Gauge (BWG)
Inch	mm
3/8"	10mm	27,26,25,24,23,22,21
1/2"	13mm	25,24,23,22,21,20
5/8"	16mm	27,26,25,24,23,22
3/4"	20mm	25,24,23,22,21,20,19
1"	25mm	25,24,23,22,21,20,19,18
1-1/4"	32mm	22,21,20,19,18
1-1/2"	40mm	22,21,20,19,18,17
2"	50mm	22,21,20,19,18,17,16,15,14
3"	75mm	21,20,19,18,17,16,15,14
4"	100mm	17,16,15,14

Hex. wire netting PVC-coated (width of 0.5M-2.0M)
Mesh		Wire Dia(mm)
Inch	mm
1/2""	13mm	0.9mm,0.1mm
1"	25mm	1.0mm,1.2mm,1.4mm
1-1/2"	40mm	1.0mm,1.2mm,1.4mm,1.6mm
2"	50mm	1.0mm,1.2mm,1.4mm,1.6mm
