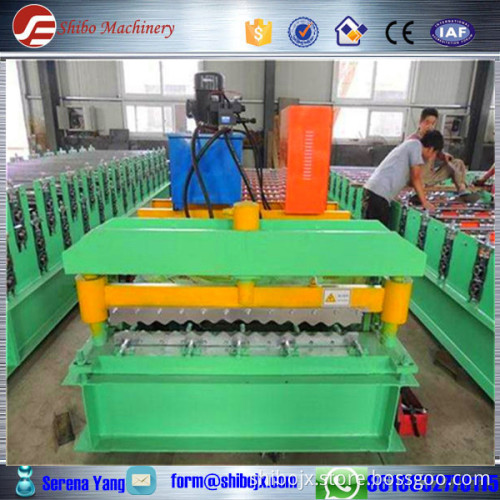

850 Corrugated iron roof sheet making machine/corrugated sheet metal roof making machine

  roofing sheet making machine   roofing sheet making machine

Machine Description	Quantity	Delivery time	Container Type	Price(FOB TIAN JIN)
roofing sheet making machine	1 SET	30 working days after receiving deposite	one 20GP	According to the profile drawing

    How was the technical data of roofing sheet making machine

No.	roofing sheet making machine
1	roofing sheet making machine
2	Width of the plate	1220mm
3	Rows of rollers	15 rows
4	Size	5500mm*1500mm*1600mm
5	Total power	4kw+5.5kw
6	Main frame	350 H steel
7	Thickness of raw material	0.3-0.8mm
8	Transportation system	Chain transportation
9	Thickness of chain	1.0inches
10	Productivity	8-10m/min
11	Out diameter of shaft	75mm (solid shaft)
12	Weight	About 3.0T
13	Shear mould	Gr12
14	Voltage	380V60Hz 3phases
15	Material of shaft	45#steel adjustable treatment

More pictures of  roofing sheet making machine roofing sheet making machine processing line    Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products    receiving

Details of roofing sheet making machine  How was the packing of  roofing sheet making machine Company information  Botou Shibo Machinery Manufacturing Co.,Ltd as one of leaders in North Zone has more than 20 year's in producing the roll forming machine.we have more than 50 experienced workers and engineers.The quality and technical of the machine be put in the first position.
      what'sapp:8618632778115   Serena Yang
