High-Quality PVC-Coated Curved 3D Wire Mesh Fence

High-Quality PVC-Coated Curved 3D Wire Mesh Fence

$12.00

5-499 pallet
$10.00

≥500 pallet

Min. Order:: 1 pallet

Min. Order:: 1 pallet

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Products Description

Nylofor 3D is an ideal solution for most types of low to medium security fence applications.
· Attractive and cost effective solution · Panels have a high level of rigidity · Wide choice of colour options · Available as a
complete system

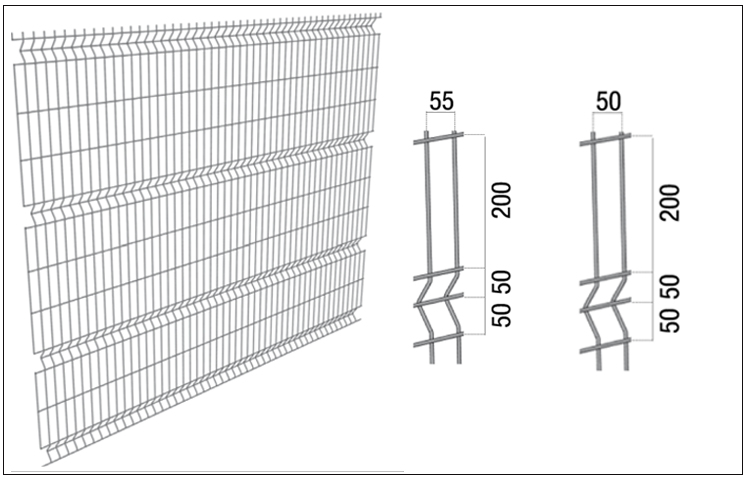

Panels The Nylofor 3D panels are 2500mm wide and heights range from 1730 to 2430mm. The panels have vertical barbs of 30mm on the
top of the panel (panels are reversible if required - barbs at top or at bottom). Mesh sizes of Nylofor 3D are 200 x 50mm, and 100

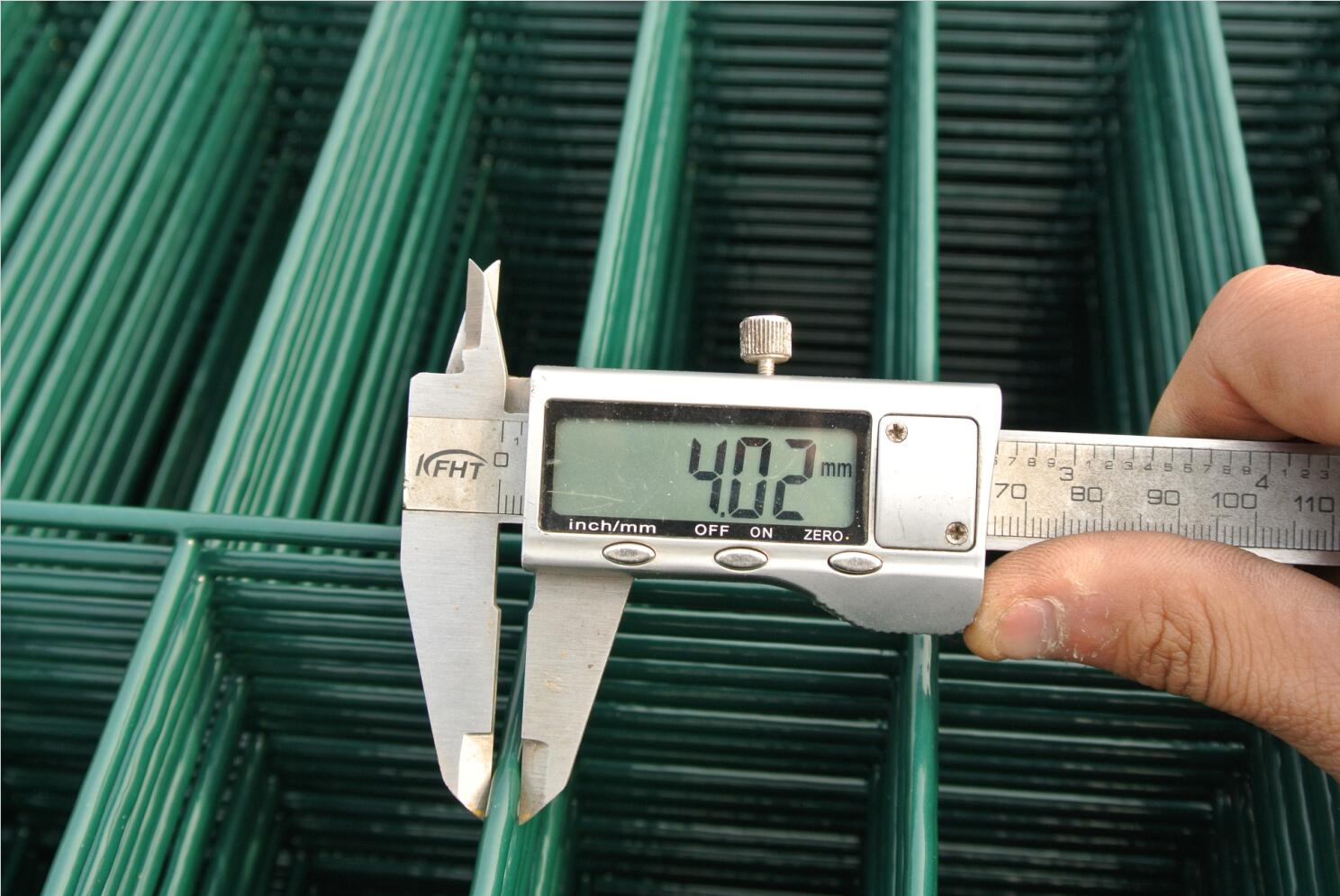

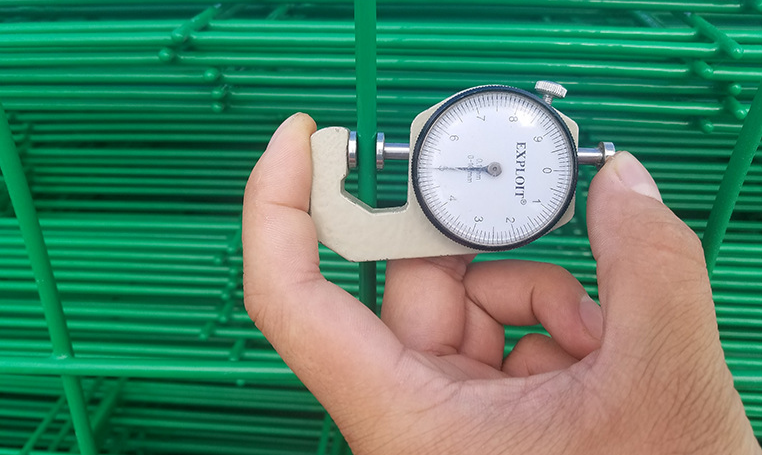

x 50mm for the beam sections. Heavy wires, with a diameter of 5mm guarantee a high level of rigidity. Coating Panels are
manufactured from pre-galvanised wires. An adhesion coating is applied to allow perfect adhesion with the polyester coating (min.
100 micron). Posts are polyester coated with a galvanized substrate in accordance with Euro norm 10147. Colours Standard colours
of Nylofor 3D are Green RAL6005 and Black RAL9005. Other colours are available on request.

Product Paramenters

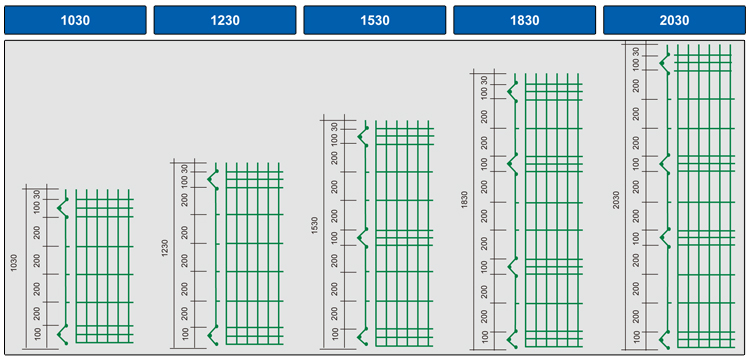

DIMENSIONS (mm)
Fence Height	post height	fence width	bending	wire diameter	mesh	mesh
630	1100	2500	2	4 5	55 x 200	50 x 150
830	1300						2
1030	1500						2
1230	1800						2
1530	2000						3
1830	2300						4
2030	2500						4
2430	3000						4
