Canada Construction Temporary Fence & Security Fencing Solutions

Temporary fence

Introduction

Canada style temporary welded fence, also know as mobile fence, portable fence, is a kind of very popular temporary fencing in Canada and North America. The key feature of Canada mobile fence is the solid frame welded by square pipes, platy stable fencing feet and p shaped top coupler.

Size: 6’×9.5’or 182.9cm x 289.6cm
Wire diameter: 3.5mm
Mesh size: 50x100mm
Frame pipe: 25x25x1.2mm
Horizontal middle brace: 20x20x1mm
Feet block: 100x863x7mm
Feet: 4 prongs
Finish: hot dipped galvanized and powder coated

other size are available

Wire Dia: 3mm----7mm

Mesh Size: 50*50mm, 75*75mm, 50*100mm .etc

Panel Size: 2.2m*2m or as customized

Tube Dia: 30*30mm, 25*25mm, 20*20mm

Tube Thickness: 1.5mm---3.0mm

Surface Treatment: Electro Galvanized, Hot-dipped Galvanized, PVC Coated

Australia Cnanada temporary fence

Dimensions
Panel Size: 2400mm (L) x 2100mm (H)
Frame: 32mm O.D. - 1mm Pipe Wall Thickness
Infill Mesh: 2.5mm wire, 150mm x 60mm spacings
Weight: 11kg
Finish: Hot Dipped Galvanised

Heavy Duty Fence

Dimensions
Panel Size: 2400mm (L) x 2100mm (H)
Panel Size: 3300mm (L) x 2100mm (H)
Frame: 32mm O.D. - 1.5 - 2mm Pipe Wall Thickness
Infill Mesh: 3-4mm wire, 150mm x 60mm spacings
Finish: Hot Dipped Galvanised

chain link temporary fence

Wire diameter:2.7mm (11.5 gauge), 2.5mm, 3mm

Chain link mesh size:57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.

Frame tube O.D:33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness

Vertical/Cross tube O.D:25mm or 32mm with 1.6mm (0.065") wall thickness

Fence base/stand:610x590mm (24'' x 23''), 762x460mm (30'' x 18''), etc

Accessory:Clamp, extra brace (diagonal brace)

Surface treatment:All joints are welded and sprayed with a galvanized paint to cover any exposed metal

Crowd control barrier

1.Bridge feet crowd control barrier

Height:1100mm

Length:2000mm,2200mm,2500mm

Frame tube:25mm,32mm,38mm round pipes

Vertical inner tube:16mm,19mm round pipes

Tube space:127mm,150mm

Bridge feet:450(W)X200(H)mm

2.V type feet crowd control barrier

Height:1100mm

Length:2200mm

Frame tube:38mm round pipes

Vertical inner tube:12mm round pipes

Tube space:150mm

feet:495mm

Leg ground clearance:300mm

3.Flat type feet crowd control barrier

Height:1100mm

Length:2500mm

Frame tube:38*1.5mm round pipes

Vertical inner tube:16mm round pipes

Tube space:127mm

Flat feet:50(W)X580(H)mmX6mm

Feature

Temporary fence panels are environmentally friendly
Temporary fence panels are a quick and convenient solution for a location or construction site . easy removing .
Temporary fence panels are Economically Priced

New Style

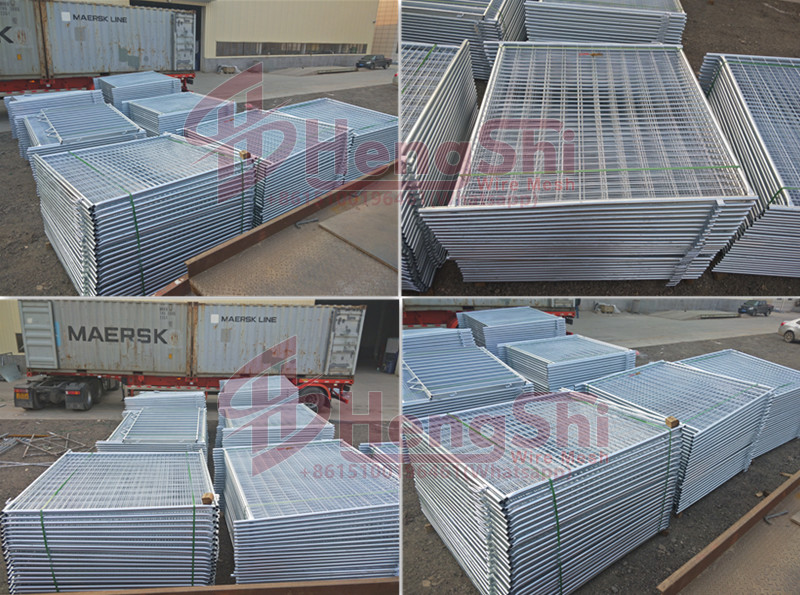

Package
