Product Description

Products Description

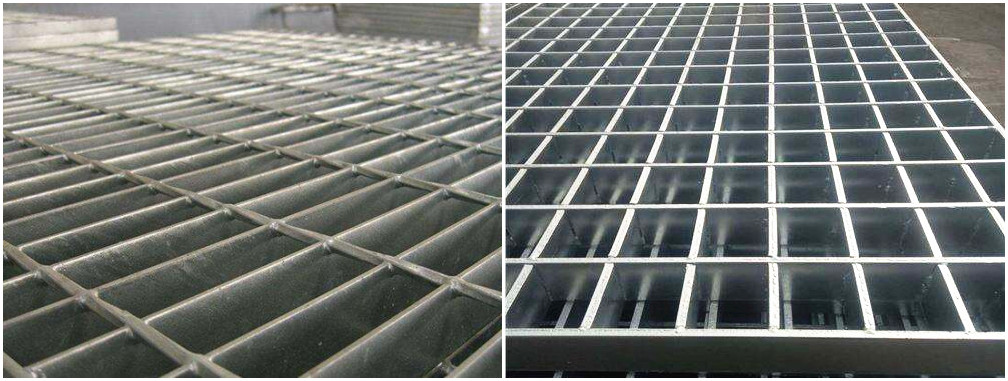

Metal bar grating can be defined as a series of metal bars positioned vertically, placed an equal distance apart and joined by cross members to form a rectangular or reticuline pattern. Typically manufactured from mild carbon steel, aluminum and stainless steels, bar gratings are also available in specialty metal alloys to suit nearly any application.

According to different processing, steel grating has two types:

Pressure Welding Pressure Locked

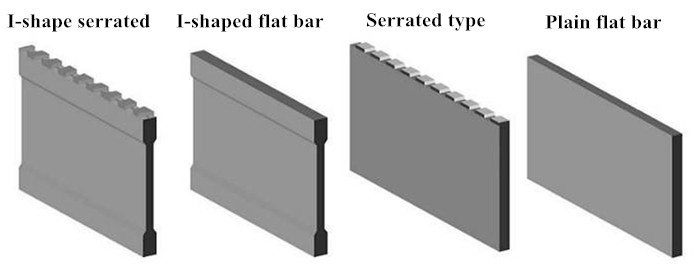

Flat bar surface shape: Plain flat bar, serrated, I-shaped flat bar, I-shape serrated.

Flat bar specification:
1> Plain flat bar:
Thickness: 3mm, 5mm.
Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.
2> I-shaped flat bar:
Thickness of both ends: 5mm.
Thickness of the center: 3mm.
Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.

Flat bar spacing: 30mm, 40mm, 60mm,etc.
Cross bar sizes: 5x5mm, 6x6mm, 8x8mm, etc.
Cross bar spacing: 50mm, 100mm.
Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.
Surface treatment: Electro galvanized, hot dip galvanized, spray paint, soak into anti-rust oil.

Pitch of Bearing bar

Cross-bar Pitch

Specification of bearing bar(width×thickness)

20×3

25×3

32×3

40×3

20×5

25×5

100

G203/30/100

G253/30/100

G323/30/100

G403/30/100

G205/30/100

G255/30/100

G203/30/50

G253/30/50

G323/30/50

G403/30/50

G205/30/50

G255/30/50

100

G203/40/100

G253/40/100

G323/40/100

G403/40/100

G205/40/100

G255/40/100

G203/40/50

G253/40/50

G323/40/50

G403/40/50

G205/40/50

G255/40/50

G253/60/50

G403/60/50

G205/60/50

G255/60/50

Pitch of Bearing bar

Cross-bar Pitch

Specification of bearing bar(width×thickness)

32×5

40×5

45×5

50×5

55×5

60×5

100

G325/30/100

G405/30/100

G455/30/100

G505/30/100

G555/30/100

G605/30/100

G325/30/50

G405/30/50

G455/30/50

G505/30/50

G555/30/50

G605/30/50

100

G325/40/100

G405/40/100

G455/40/100

G505/40/100

G555/40/100

G605/40/100

G325/40/50

G405/40/50

G455/40/50

G505/40/50

G555/40/50

G605/40/50

G325/60/50

G405/60/50

G455/60/50

G505/60/50

G555/60/50

G605/60/50

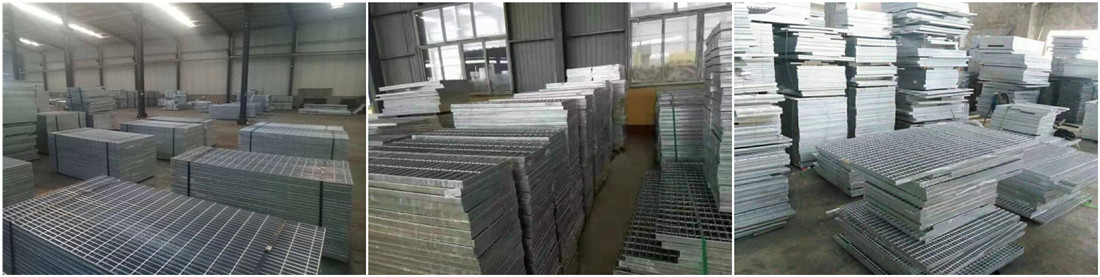

Workshop & Warehouse

Application

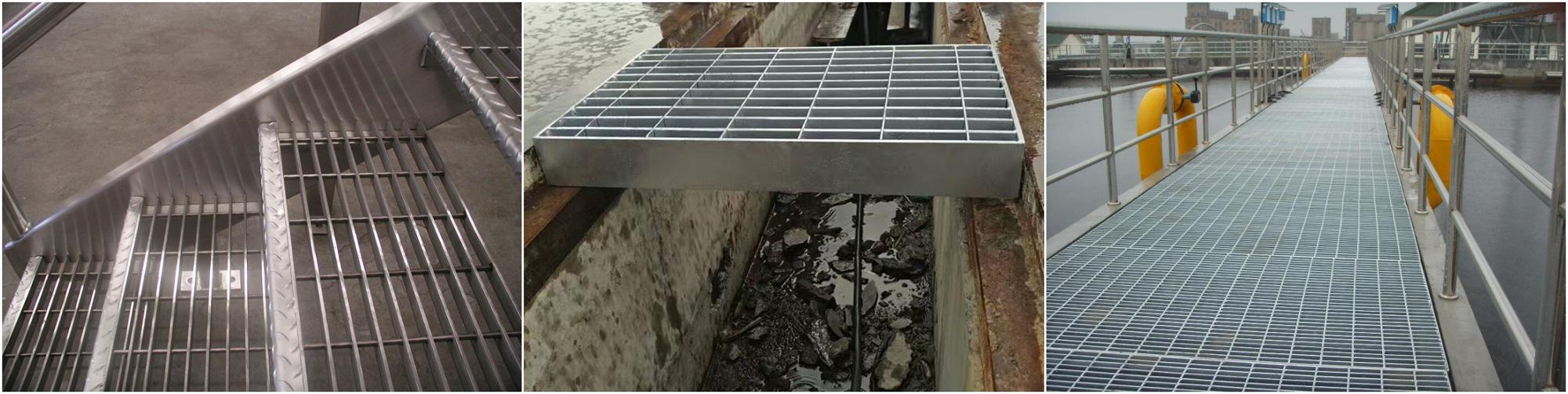

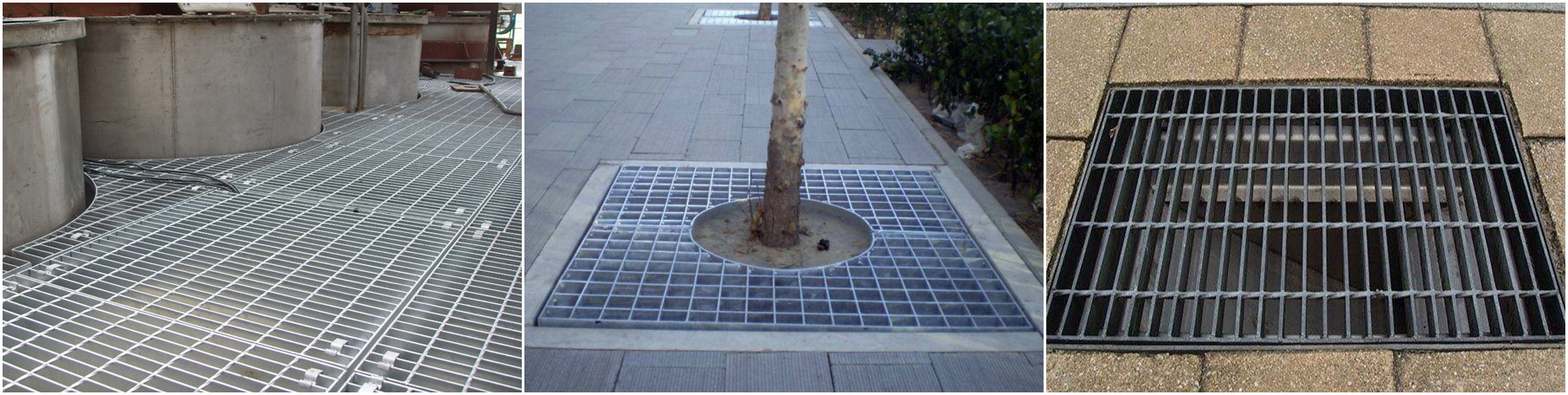

Steel grating is widely used in many areas:
a. It can be used as stair tread grating.
b. It can be used in the municipal engineering as drainage trench covers to drain water and keep ground dry.
c. It can be used in the port, parking lot, farmland and other places as platform walkway grating for pedestrian and vehicles access & passing.

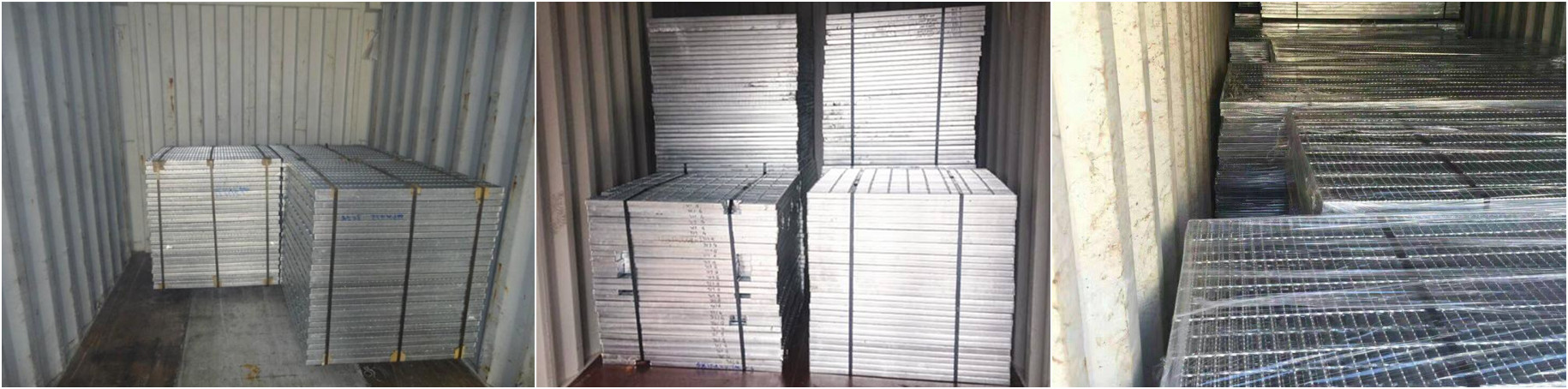

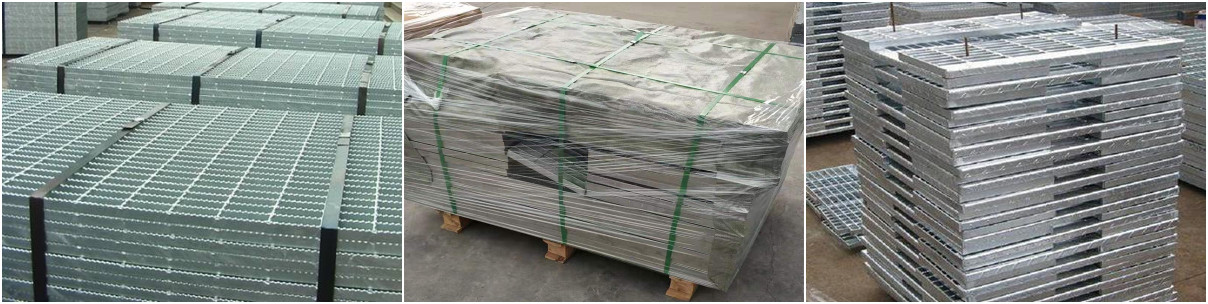

Packing & Shipping

Steel grating usual packages:
1. Strap Packaging.
2. Pallet Packaging.
3. Screw Rod Fixation.
4. Other pacakge is available.
