Refractory Insulation Ceramic Fiber Blanket for Boiler
- Delivery Time:
- 15 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|
heat storage and heat capacity
Excellent heat insulation
Excellent chemical stability

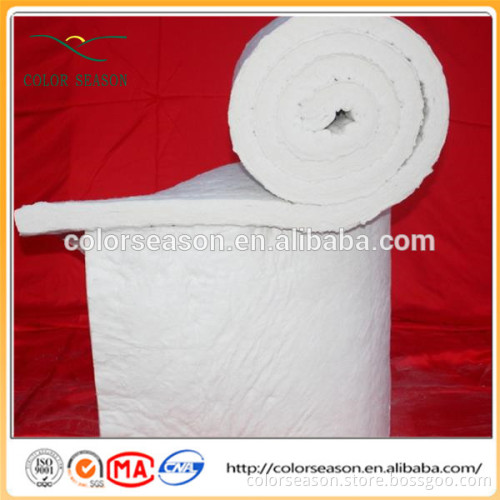

Insulation Ceramic Fiber Blanket
The ceramic Fiber is made through intensive needle-punching processing . The product does not contain any bond or other compositions,and also no slag inclusion content. Beside the charicteriatics in common,it have better sound insulation performance and mechanism strength,is easy to machining and install. Ceramic fiber blanket application: *Industrial furnace,Heat treatment,High temperature pipe *Insulating materials of boiler, turbine and nuclear power *Insulating material for face and top of industrial furnaces and heating device *Excellent sound insulation for Construction Fire protection *High temperature filter material for nonferrous metal.
Type | Standard | High Pure | High Aluminum | Zir-Alu | Zirconium | |
Classification Temp(oC) | 1260 | 1260 | 1360 | 1360 | 1430 | |
Working Temp (oC) | 1050 | 1100 | 1200 | 1200 | 1350 | |
Color | Pure white | Pure white | Pure white | pure white | Pure white | |
Density (kg/m3) | 64 | 64 | 96 | 96 | 128 | |
160 | 160 | 160 | 160 | 160 | ||
Permanent linear shrinkage(%)(after24 hours,128kg/m3) | -3 | -3 | -3 | -3 | -3 | |
(1000oC) | (1100oC) | (1250oC) | (1000oC) | (1350oC) | ||
Thermal conductivity (w/m.k),128kg/m3) | 0.09(400oC) | 0.09(400oC) | 0.12(600oC) | 0.132(600oC) | 0.16(800oC) | |
0.16(800oC) | 0.16(800oC) | 0.20(1000oC) | 0.22(1000oC) | 0.20(1000oC) | ||
Tensile strength (Mpa)(128kg/m3) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | |
Chemical Composition (%) | Al2O3 | 46 | 47--49 | 52-55 | 45-46 | 39-40 |
Al2O3+SiO2 | 98 | 99 | 99 | - | 88 | |
ZrO2 | - | - | - | 5-7 | 15-17 | |
Fe2O3 | 0.4 | 0.2 | 0.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.3 | 0.2 | 0.2 | 0.2 | 0.2 | |
CaO+MgO | 0.2 | 0.2 | 0.2 | - | 0.2 | |
Size (mm) | 14640x610x13; 14640x1220x13; 7200x610x25; 7320x610x25; 7200x1220x25; 3600x1220x50; 3600x610x50 | |||||
*Low thermal conductivity ,heat storage and heat capacity *Excellent heat insulation *Excellent chemical stability *Shock and chemical attack resistant *Low thermal conductivity and shrinkage *Resilience under working condition, Low shrinkage under high temperature *Excellent sound insulation and resistance of folding
