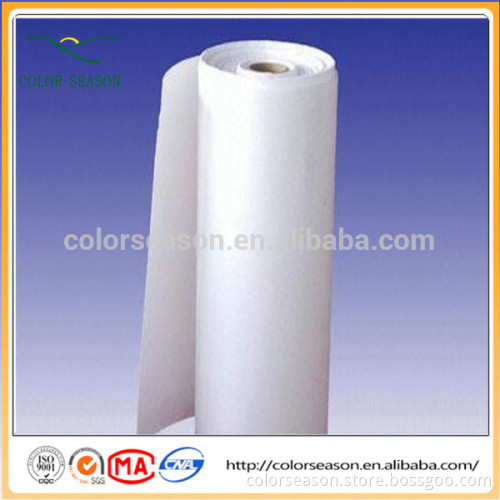

1360 refractory ceramic fiber paper

Specifications Refractory ceramic fiber paper

Low thermal conductivity

Resistance to heat-shock

Good thermal insulation property

1360 refractory ceramic fiber paper  ceramic fiber paper packing    Ceramic fiber paper is made from high-purity ceramic fiber by adding a small amount  of binder which will completed burnt out during using process,through production  technology with scientific selection and strict control binding. The product shows   excellent thermal insulation properties and construction performance, suitable   for use in deep processing (multi-layer composite, punching, etc.); and  excellent resistance to molten infiltration, allowing itself to be used for casting  washer separation in the construction and glass industries.      Ceramic fiber paper Specifications   1.STD 1260 Ceramic Fiber Board  2.HP 1260 Ceramic Fiber Board
3.HA 1360 Ceramic Fiber Board
4.HZ 1430 Ceramic Fiber Board   Ceramic fiber paper application     -Industrial insulating ,sealing and protecting materials    -Electric and thermal insulation materials for electric industry   -Insulation materials for instrument-equipment   -Insulating materials for motor industry   -Filling materials for expansion slot   -Insulating materials as the sinter resistance    -Sealing gasket for molten metal   -Fireproof materials      Ceramic fiber paper technical data

ITEM		Standard	Pure	High  Aluminum	Zirconium
Classification temperature(℃)		1260	1260	1360	1430
Work temperature(℃)		1050	1100	1200	1350
Color		white	white	white	white
Density(kg/m3)		200-250	200-250	200-250	200-250
Permanent.linear shrinkage(%)		-3 (1000℃)	-3 (1100℃)	-3 (1250℃)	-3 (1350℃)
Thermal conductivity (w/m.k)		0.09(400℃) 0.176(800℃)	0.09(400℃) 0.176(800℃) 0.22(1000℃)	0.132(600℃) 0.22(1000℃)	0.76(600℃) 0.22(1000℃)
Tensile.strength(Mpa)		0.08-0.12	0.08-0.12	0.08-0.12	0.08-0.12
Chemical Composition(%)	AL2O3	46	47-49	52-55	39-40
	AL2O3+ SIO3	97	99	99	-
	AL2O3+SIO3+ ZrO2	-	-	-	99
	ZrO2	-	-	-	15-17
	Fe2O3	<1.0	0.2	0.2	0.2
	Na2O + K2O	≤0.5	0.2	0.2	0.2
Size(mm)		40000/30000/20000x610x1/2/3,other size due to your demand
Package		Bag, Carton

   Ceramic fiber paper features    1.light weight  2.easy to install  3.Low thermal conductivity   4.good electric insulation   5.excellent corrosion resistant   6.no asbestos  7.no delamination
