Grip rebar splices for construction

Product Description Parameter: Product Name  Anti impact application repair grip rebar couplers portable steel bar connectors
Material  Alloy steel
Brand  HBYD
Standard  DIN GB ISO JIS BA ANSI
Grade  Eurocode 2, BS 8110, DIN 1045, ACI 318, IBC, AASHTO, ASME Sec III Div 2,ASTM Standard.
Certificate  ISO9001, D&B,CE,DCL.
Thread  No special thread cutting or chemistry requirements.
Used  rebar splicing system in construction or building.

Hebei Yida Anti Impact Rebar Coupling system is a mechanical rebar splicing system, be made of high quality alloy steel. It has already passed the High Speed Tensile test of Anti instant impact by Germany Berlin BAM Laboratory. It has been widely applied at the sites where required high level of resistance to impact. The coupler sleeve will be perfect connected with rebar by cold swaged deformation in the application, and dual couplers will be connected by a high strength bolt.

FCJ Positive and Negative thread coupler FCJ Positive and Negative thread coupler is made up by one standard sleeve, one negative thread sleeve and one transition bolt,used for connection between two pieces of different diameter rebar. It is suitable for long rebar connections, or bended rebars where the rotation of the rebar is difficult or even impossible. Only one of the rebars must be movable on its axis. Through turning the bolt, two pieces of rebar can be loosen or tighten at same time.

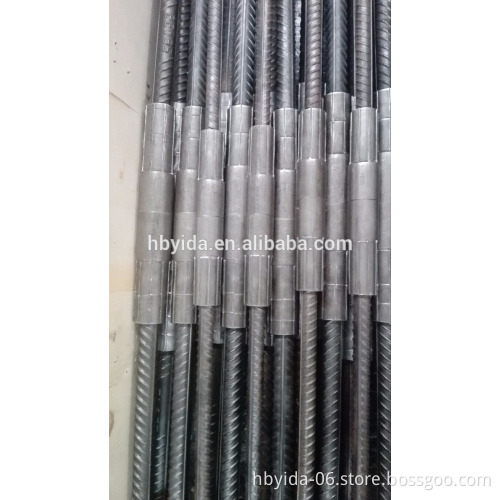

Detailed Images Characteristic：FCJ Coupler can make two different diameter rebar connecting more efficient even the rotation of the rebar is difficult or even impossible

Application Guide：

Proper installation is very important to ensure the design load will be reached in the application. Yida strongly recommends that the installation and site quality check be done according to the required guidelines and dimensions.

●Rebar And sleeves swaged connection

Using hydraulic machine and unique split mould to swage sleeve deformation, formed the seamless connection with rebar and the swage length is to meet the standard swage length. Shorter swage length reduces the bond, while longer swage length may shorten the engagement length of the thread.

●Site Installation Method

Step 1：Make one sleeve swaged with rebar, another sleeve swaged with rebar, touch to the positive & negative bolt.
Step 2：When screw the bolt, make the two sides sleeve keep touch with bolt, can turn both two sides sleeve into the bolt, till the sleeves touch into the bolt convex plate.
Step 3：With help of two pipe wrench,tighten the connection by turning both rebar / couplers in opposite direction at the same time.
Packing & Delivery Packaging Details: Carton box with waterproof plastic bag to protect our hydraulic grip couplers,then put into wooden case of exporting use, to do the best and safe shippment of Anti impact application repair grip rebar couplers portable steel bar connectors HBYD.
Delivery Detail: Shipped in 3 days after payment
