Anti impact rebar coupling system splices

Product Description Product Name:Anti impact application repair grip rebar couplers portable steel bar connectors
Material:Alloy steel
Brand:HBYD
Standard:DIN GB ISO JIS BA ANSI
Grade:Eurocode 2, BS 8110, DIN 1045, ACI 318, IBC, AASHTO, ASME Sec III Div 2,ASTM Standard.
Certificate:ISO9001, D&B,CE,DCL.
Thread:No special thread cutting or chemistry requirements.

MCJ Anchorage Terminator Coupler

MCJ Anchorage Terminator Coupler is made up by one standard sleeve, one standard bolt, and one standard anchorage terminator coupler,used for the connection between rebar and anchorage terminator coupler. It can be used when need using anchorage terminator coupler to connect with rebar.
Characteristic：MCJ Coupler is using standard sleeve, standard bolt to make the rebar connected with anchorage terminator coupler so that can satisfy the anti impact requirement.

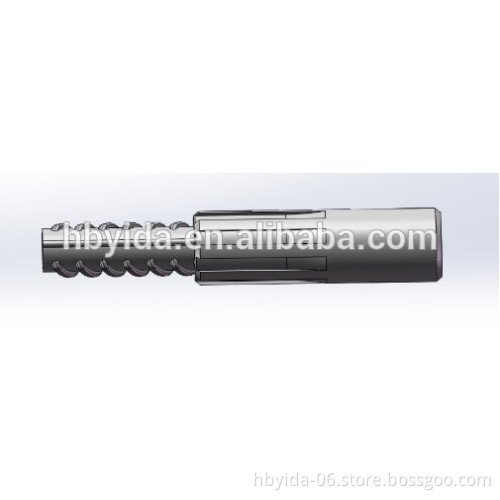

●Rebar And sleeves swaged connection

Using hydraulic machine and unique split mould to swage sleeve deformation, formed the seamless connection with rebar and the swage length is to meet the standard swage length. Shorter swage length reduces the bond, while longer swage length may shorten the engagement length of the thread.

●Site Installation Method

Step 1：Screw the standard bolt into female coupler swaged with rebar, till unable to screw continually.
Step 2: Screw the anchorage terminator coupler into standard bolt, make the anchorage terminator coupler keep touch with female coupler.
Step 3: With help of two pipe wrench, tighten the connection by turning both two sleeves in opposite direction at the same time.
Detailed Images Hebei Yida Anti Impact Rebar Coupling system is a mechanical rebar splicing system, be made of high quality alloy steel. It has already passed the High Speed Tensile test of Anti instant impact by Germany Berlin BAM Laboratory. It has been widely applied at the sites where required high level of resistance to impact. The coupler sleeve will be perfect connected with rebar by cold swaged deformation in the application, and dual couplers will be connected by a high strength bolt.

Packing & Delivery Packaging Details: Carton box with waterproof plastic bag to protect our hydraulic grip couplers,then put into wooden case of exporting use, to do the best and safe shippment of Anti impact application repair grip rebar couplers portable steel bar connectors HBYD.
Delivery Detail: Shipped in 3 days after payment
