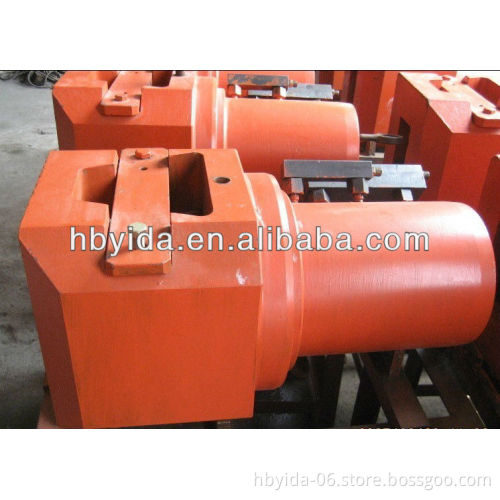

50mm large Upset Forging & Threading Machine

Specifications 1.use Upset Forging machine to forging rebar end.

2.use Rebar Thread Cutting machine to process thread.

3.use rebar coupler

50mm Upset Forging & Threading Machine Upset Forging Machine for 50mm rebar processing
1. Diameter range: 40-50mm.
2. Oil pump flux: 6L/min
3. Weight: 625Kg

  Upset Forging & Threading Machine for Rebars 50mm processing
(1) Enlarging ends of rebar by cold upsetting machine;
(2)Threading parallel threads. (3)special design for  rebar diameter :above 40mm , to 50mm .   Upset forging & bar threading machine for rebar 50mm   1. 100% Bar Break Performance
Rebar Splice is a parallel thread mechanical splicing system designed for the connection of concrete reinforcing bars from Φ40~Φ50.

2. Product Features
* Designed and manufactured in compliance with ACI318, JGJ107, UBC 1997, BS8110, NF35-20-1, DIN1045, ISO/WD 15835 (Draft).
* Full-Tension splice, bar break under tensile tests.
* Easy to operate and maintain, High production efficiency and fast installation, no need for skilled technicians.
* Several types of splices, which could be suitable for rebar splicing when the rebar cage or the bending rebar is used.
* The splices could be produced in advance without influencing the construction period.
* Inexpensive to purchase, maintain and repair.
* Couplers and threaded bars are protected by plastic cover.
* Full traceability of material origin and production batch.
* Manufactured under strict quality assurance plan ISO 9001.

3. Benefits:
* No staggering of spliced bars required.
* Practical alternative to lap splicing.
* Solves bar congestion problems.
* Shortens construction cycle time.
* Reduces steel wastage.

4. Product type:
5. 2400 type : Parallel Thread Rebar Splicing with Cold Upsetting End
Principle:
(1) Enlarging ends of reinforced bars by cold upsetting;
(2) Threading parallel threads;
(3) Splicing rebars by coupler. (4) customized rebar couplers 50mm ,and hexgaon shape.   Detailed technical information of upset forging machine 2400 type:

Rebar diameter range:	φ40-φ50
Oil pump flux:	6L/min
Rating power:	<60Mpa
Electric motor power:	4KW
Piston movement distance:	100mm
Out dimension(mm):	810×410×410mm
Weight:	625Kg
