50mm rebar upset forging jack

Specifications 1.use Upset Forging machine to forging rebar end.

2.use Rebar Thread Cutting machine to process thread.

3.use rebar coupler

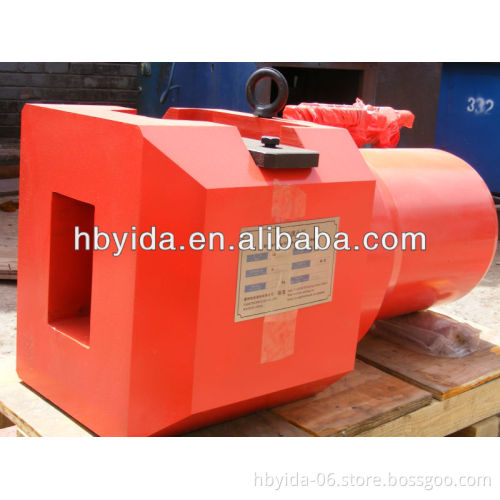

50mm rebar Upset Forging Jack   Upset Forging Machine for 50mm rebar processing
1. Diameter range: 40-50mm.
2. Oil pump flux: 6L/min
3. Weight: 625Kg

  Upset Forging & Threading Machine for Rebars 50mm processing
(1) Enlarging ends of rebar by cold upsetting machine;
(2)Threading parallel threads. (3)special design for  rebar diameter :above 40mm , to 50mm .   Upset forging & bar threading machine for rebar 50mm   1. 100% Bar Break Performance
Rebar Splice is a parallel thread mechanical splicing system designed for the connection of concrete reinforcing bars from Φ40~Φ50.

2. Product Features
* Designed and manufactured in compliance with ACI318, JGJ107, UBC 1997, BS8110, NF35-20-1, DIN1045, ISO/WD 15835 (Draft).
* Full-Tension splice, bar break under tensile tests.
* Easy to operate and maintain, High production efficiency and fast installation, no need for skilled technicians.
* Several types of splices, which could be suitable for rebar splicing when the rebar cage or the bending rebar is used.
* The splices could be produced in advance without influencing the construction period.
* Inexpensive to purchase, maintain and repair.
* Couplers and threaded bars are protected by plastic cover.
* Full traceability of material origin and production batch.
* Manufactured under strict quality assurance plan ISO 9001.

3. Benefits:
* No staggering of spliced bars required.
* Practical alternative to lap splicing.
* Solves bar congestion problems.
* Shortens construction cycle time.
* Reduces steel wastage.

4. Product type:
5. 2400 type : Parallel Thread Rebar Splicing with Cold Upsetting End
Principle:
(1) Enlarging ends of reinforced bars by cold upsetting;
(2) Threading parallel threads;
(3) Splicing rebars by coupler. (4) customized rebar couplers 50mm ,and hexgaon shape.   Detailed technical information of upset forging machine 2400 type:

Rebar diameter range:	φ40-φ50
Oil pump flux:	6L/min
Rating power:	<60Mpa
Electric motor power:	4KW
Piston movement distance:	100mm
Out dimension(mm):	810×410×410mm
Weight:	625Kg

      Dies,dies holders and dispatch of 50mm Rebar upset forging machine:
