rebar upset forging parallel thread machine

Specifications 1.use Upset Forging machine to forging rebar end.

2.use Rebar Thread Cutting machine to process thread.

3.use rebar coupler

rebar upset forging parallel thread machine   Advantages: 1. The tensile strength of this system can be reach 1.1 times of steel bar, make sure 100% BAR BREAK; 2. Easy operation, high efficiency, forging and threading one rebar end only cost no more than one minute.   Package: Inner fumigation-free wooden case .   Principle: First, we use Upset Forging machine to forging the end of rebar. Second, we use Rebar Thread Cutting machine to process thread on the forged end of rebar; Third,we use Upset parallel thread coupler to abuting joint two threaded ends of rebar .   Detailed technical information of upset forging machine:

Rebar diameter range:	φ16-φ40
Oil pump flux:	5L/min
Rating power:	<60Mpa
Electric motor power:	4KW
Piston movement distance:	100mm
Out dimension(mm):	1225×570×1100mm
Weight:	597Kg

  Upset forging Machine BDC-1 Photo:   Detailed technical information of Rebar Thread Cutting Machine:

Rebar diameter range:	φ16-φ40
Threading Cutting Speed:	32r/min
Backing Speed:	64r/min
Electric motor power:	2.4/3KW
Cutting Head Movement distance:	150mm
Out dimension(mm):	1325×570×1070mm
Weight:	537Kg

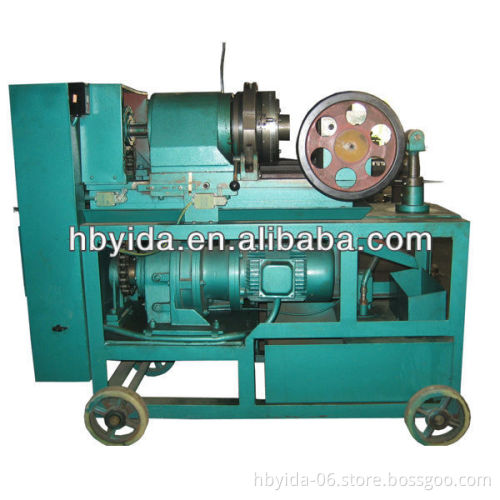

    Machine Photo:        Connect with upsetting rebar coupler:     If you're intested in more about our rebar forging machine & parallel thread machine,contact us in first time, my name card below:
