construction concrete reinforcing steel rebar end upsetting forgued machine

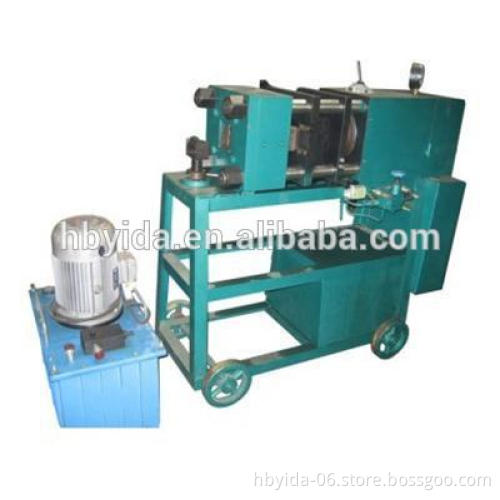

  Rebar upsetting machine   This machine is the preparative machine of rebar connecting in construction. Its main function is upsetting and thickening the end part of rebar to raise the rebar area.   1.Use:    forging rebar end make it more thick,grade II ,III steel bar diameter range is 16-40mm.   2.Features   it adopt cold forging technical to increase the tensile strength of steel rebar and not destroy the mechanical property.   With small sizes,the clamp and mould cavity are integrated,lower the volume and other clamp sets.and keep the supsetting end are same coaxial with the bar body.increase the work effciency.   Technical parameters

Rebar Diameter Range:	12 --40mm
Oil Pump Flux:	5L/min
Rating Power:	<60Mp
Electric Motor Power:	4KW
Piston Movement Distance:	100mm
Out Dimension(mm):	1225*570*1100mm
Weight:	597Kg

 Application:                                                                             Our relate other machine 1.Single steel rebar rib peeling and thread rolling machine 2.Steel rebar head upsetting machine 3.New steel rebar head upsetting machine 4.Steel rebar derectly thread rolling machine  5.Steel rebar derectly thread rolling machine
