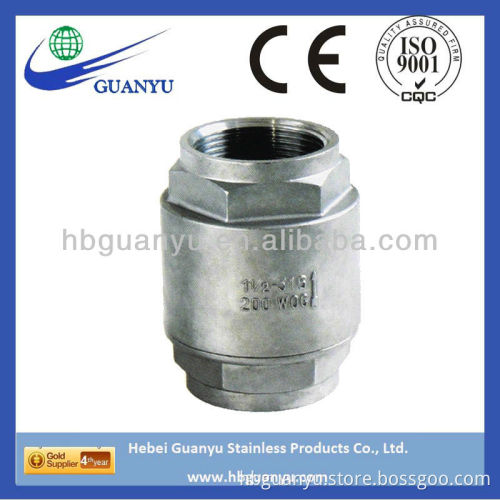

Hebei factory 2pc ss316 stainless steel spring vertical loaded check valve cf8m drawing

Hebei factory 2pc ss316 stainless steel spring vertical loaded check valve cf8m drawing precision manufacturing
Investment casting
CE & ISO9001:2000 certificate   MATERIAL LIST:

ITEM	DESIGNATION	MATERIAL
1	CAP	CF8M
2	GASKET	PTFE
3	STEM	304/316
4	BODY	CF8M

    PARAMETERS:

SIZE	3/8″	1/2″	3/4″	1″	1-1/4″	1-1/2″	2″	2-1/2″	3″	4″
A	54	57	64	75	82	93	100	120	140	155
B	30	34.5	41.5	48	60.5	71	87	110	125	158

    DRAWING:          Our products range:

Ball Valve: Mini/1pc/2pc/3pc thread ball valve, 3pc butt weld/socket weld/union butt weld/clamp end ball valve, 1pc/2pc/3pc scrwed ball valve with mounting pad, 1pc/2pc/3pc flanged ball valve, two way/three way ball valve and so on.

Pipe Fitting:45/90 deg elbow. tee, cross, 90 deg street elbow, union, hexagon nipple, cap fitting, reducer fitting, socket fitting, hose nipple, bushing, Y-strainer and so on.

Camlock coupling: Type A B C D E F DC DP

        ISO9001:2000 & CE quality certificate
