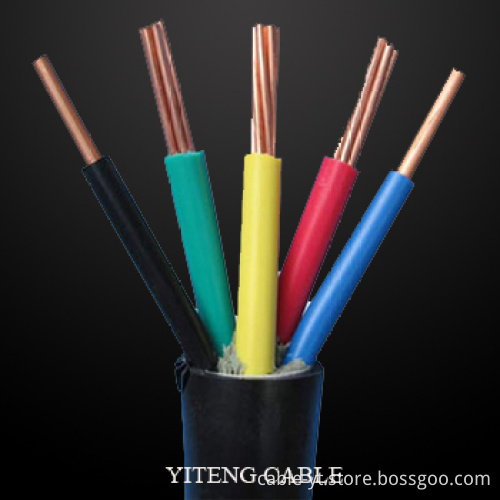

PVC and XLPE Insulated Control Cable







Operating Characteristics



U0/U=450/750V



Rated power-frequency rated voltage U0/U is 450/750V



Max. permissable continuous operating temperature of conductor is 70℃



The ambient temperature under installation should not be lower than 0℃,if the ambient temperature is below 0℃,the cable should be preheated.



The permissable bending radius of cable is recommeded as follows:



Un-armored cable: should be not less than 6 times of cable`s OD



Armored or tape screen cable: should be not less than 12 times of cable`s OD



Screen flexible cable: should be not



less than 6 times of cable`s OD.







Application



The PVC and XLPE insulated PVC sheathed control cable is suitable for patching of control,signal protected and measures systems with rated voltage up to and including 450/750V.







Standard of product



The product is manufactured according to GB/T9330-2008 standard.At the same time, it can also be manufactured according to IEC, BS ,DIN and AEIC standard upon request.







Types and Description



Type

Description

KVV PVC insulated ,PVC sheathed control cable

KVVP PVC insulated ,PVC sheathed braided-shielding control cable

KVVP2 PVC insulated ,PVC sheathed copper tape shielding control cable

KVVP3 PVC insulated ,PVC sheathed composited aluminum-plastic tape shielding control cable

KVV22 PVC insulated ,PVC sheathed steel tape armored control cable

KVV32 PVC insulated ,PVC sheathed cooper thin steel wire armored control cable

KVVR PVC insulated ,PVC sheathed control flexible cable

KVVRP PVC insulated ,PVC sheathed shielded flexible control cable

KVVP-22 PVC insulated ,copper wire braided shielding PVC sheathed steel tape armored control cable

KVVP2-22 PVC insulated ,copper tape shielding, PVC sheathed ,steel tape armored control cable



Type

Description

KYJV

Copper core XLPE insulated PVC sheathed control cable

KYJVP

Copper core XLPE insulated PVC sheathed braided screened control cable

KYJVP2

Copper core XLPE insulated PVC sheathed copper tape screened control cable

KYJV22

Copper core XLPE insulated PVC sheathed steel tape armored control cable

KYJV32

Copper core XLPE insulated PVC sheathed thin steel wire armored control cable

KYJVR

Copper core XLPE insulated PVC sheathed flexible control cable

KYJVRP

Copper core XLPE insulated PVC sheathed braided screened control cable
